GRC Series.
GRC
b20
GRC

GRC(Glass Fiber Reinforced Concrete), also called GFRC,is akind of compound material, takes slurry as its reinforcing materials, mixed with pigments, ete. The workmanship of GRC production process is unique, by way of spraying the mixed glass fiber reinforced concrete on the mould; the texture is exquisite which c an ensure the good properties of compaction, strength, and crack-resistance of the products. Qualities ofproducts fabricated by such a way are much better than the concrete products fabricated by normal way.


GRC has a very high plasticity, it can imitate textures of different materials and provide unlimited possibilities to architectural design. For example, Metallic Paint, Fair-Face, Self-cleaning water, Simulated Sand Stone, Simulated Brick, Simulated Timber, Simulated Bamboo, Special Profile, Multi Texture.

Product Features
01
Energy conservation

Compared with other wall maintenance structures, the manufacturing and installation process of GRC consumes less energy. Compared with reinforced concrete wall panels, using GRC wall panels can reduce carbon emissions by 30%.

02
Realistic texture

GRC can delicately and accurately represent different textures and textures. It can be made as smooth as a mirror or as rough as a stone. The texture effect is very realistic, making it an ideal simulation material. GRC can also attach textured surface layers such as latex paint and fluorocarbon paint, and can also mimic various textures such as granite, sandstone, red bricks, ceramic tiles, wood, metal, etc.

03
The design is casual

GRC components are formed by manufacturing them in molds. The product is lightweight and can achieve various complex and arbitrary architectural styles, as well as easily realize the artistic conception of architects. GRC has unique advantages in achieving nonlinear architecture.

04
Thin wall and light body

GRC density between 1800~2000kg/m ³ Left and right, with a wall thickness between 10mm and 30mm. Due to its thin wall, the natural body is lightweight.

Parametric performance
PerformanceIⅡI
Bulk Density/(g/cm)≥2.0≥1.8
Compressive Strength/MPa≥40.0
Ultimate Flexural Strength/MPa≥18.0≥10.0
Tensile Strength/MPa≥7.0≥5.0
Impact Strength/(kJ/m2)≥12.0≥8.0
Water Absorption/%≤8.0≤10.0
Frost-resistanceAfter freeze-thaw cycles, there is no damage such as delamination or peeling (the number of freeze-thaw cycles is 100 in severe cold areas, 75 in cold areas, and 50 in other areas)
Note: The compressive strength, ultimate flexural strength, tensile strength, and impact strength are the structural layer properties of the product.


Product Display

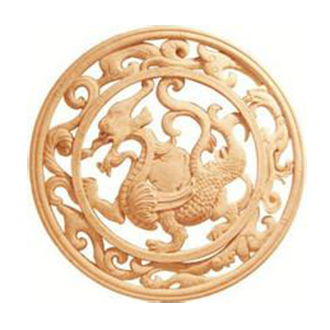

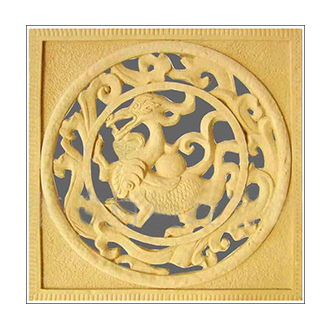

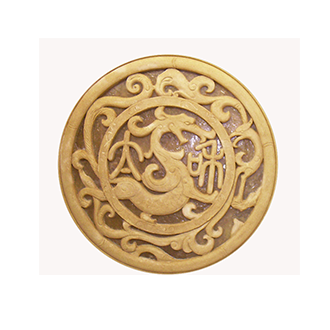

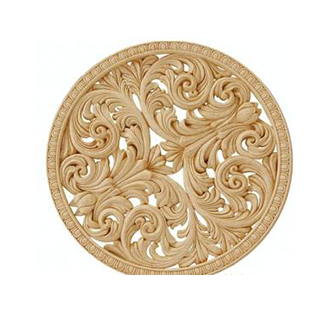

Circular engravure-1
Circular engravure-1
Circular engravure-2
Circular engravure-2
Circular engravure-3
Circular engravure-3
Circular engravure-4
Circular engravure-4
Circular engravure-5
Circular engravure-5
Circular engravure-6
Circular engravure-6
Circular engravure-7
Circular engravure-7
Circular engravure-8
Circular engravure-8
Circular engravure-9
Circular engravure-9
Circular engravure-10
Circular engravure-10
Circular engravure-11
Circular engravure-11
Circular engravure-12
Circular engravure-12
Circular engravure-13
Circular engravure-13
Circular engravure-14
Circular engravure-14

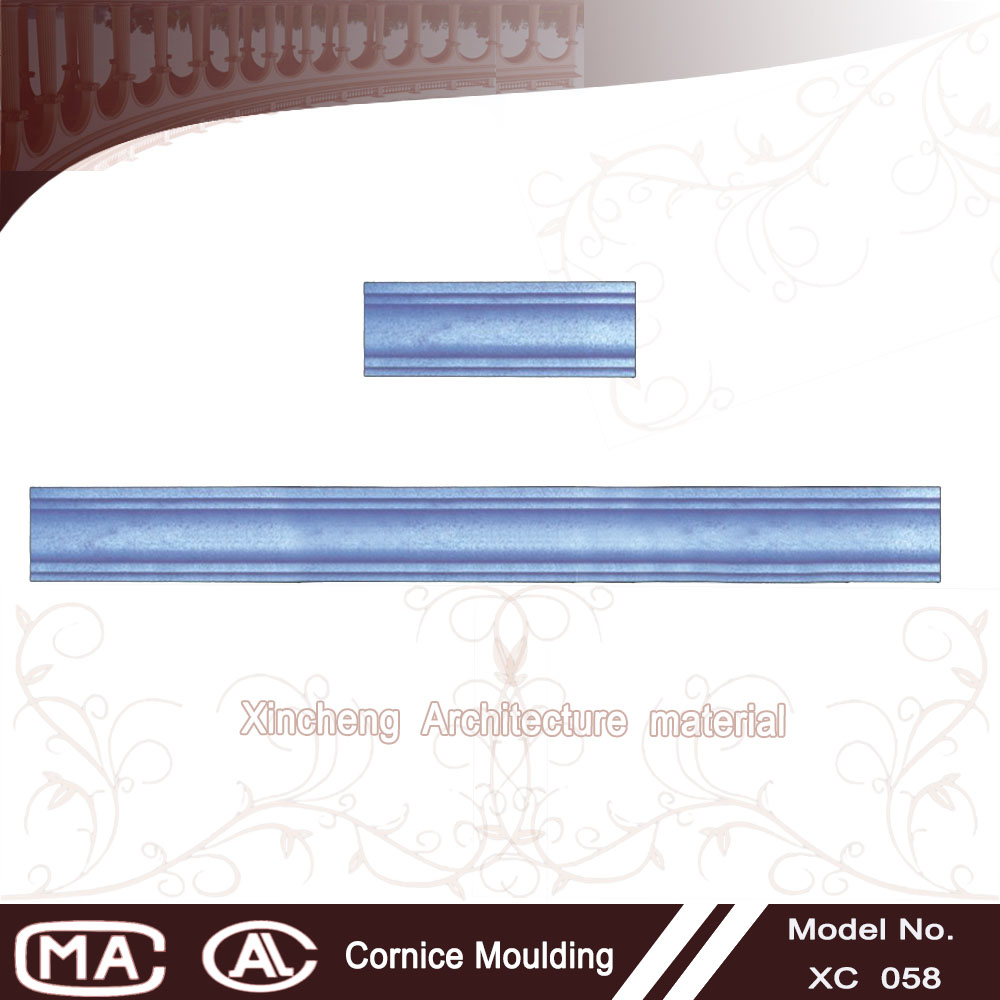

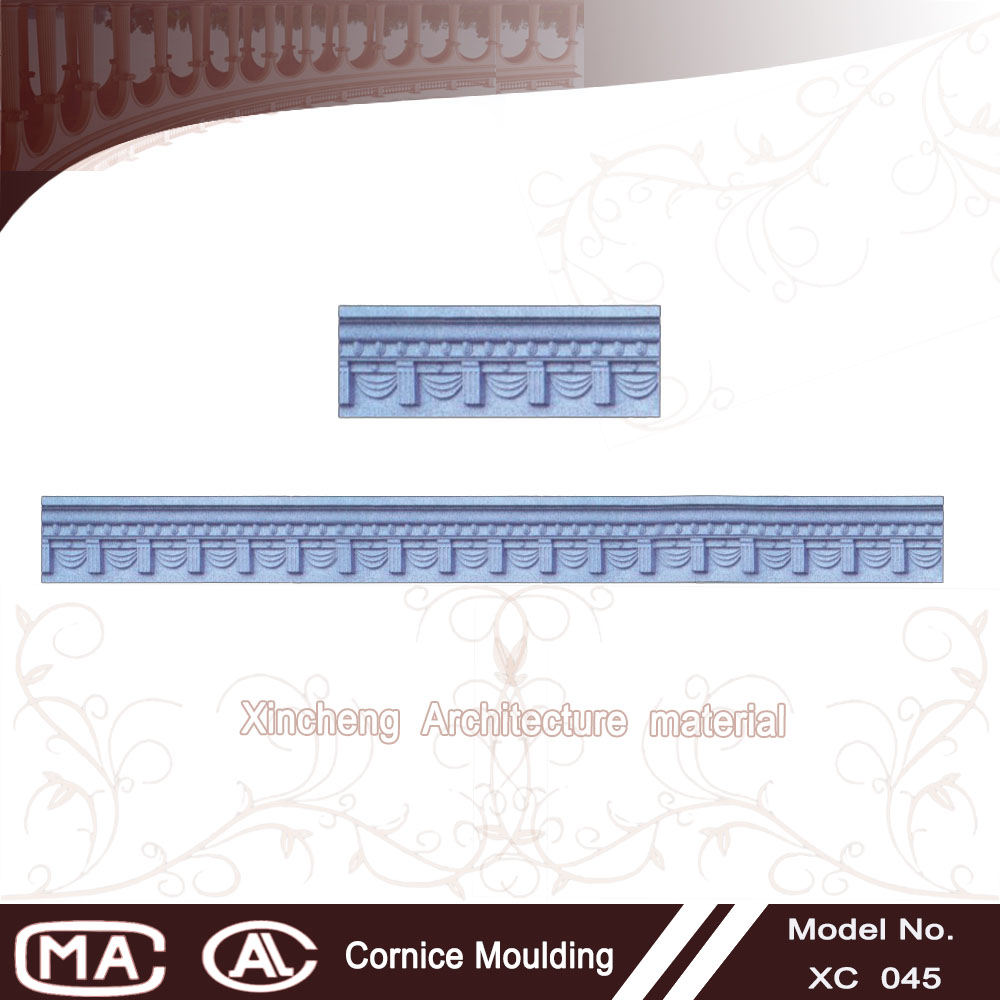

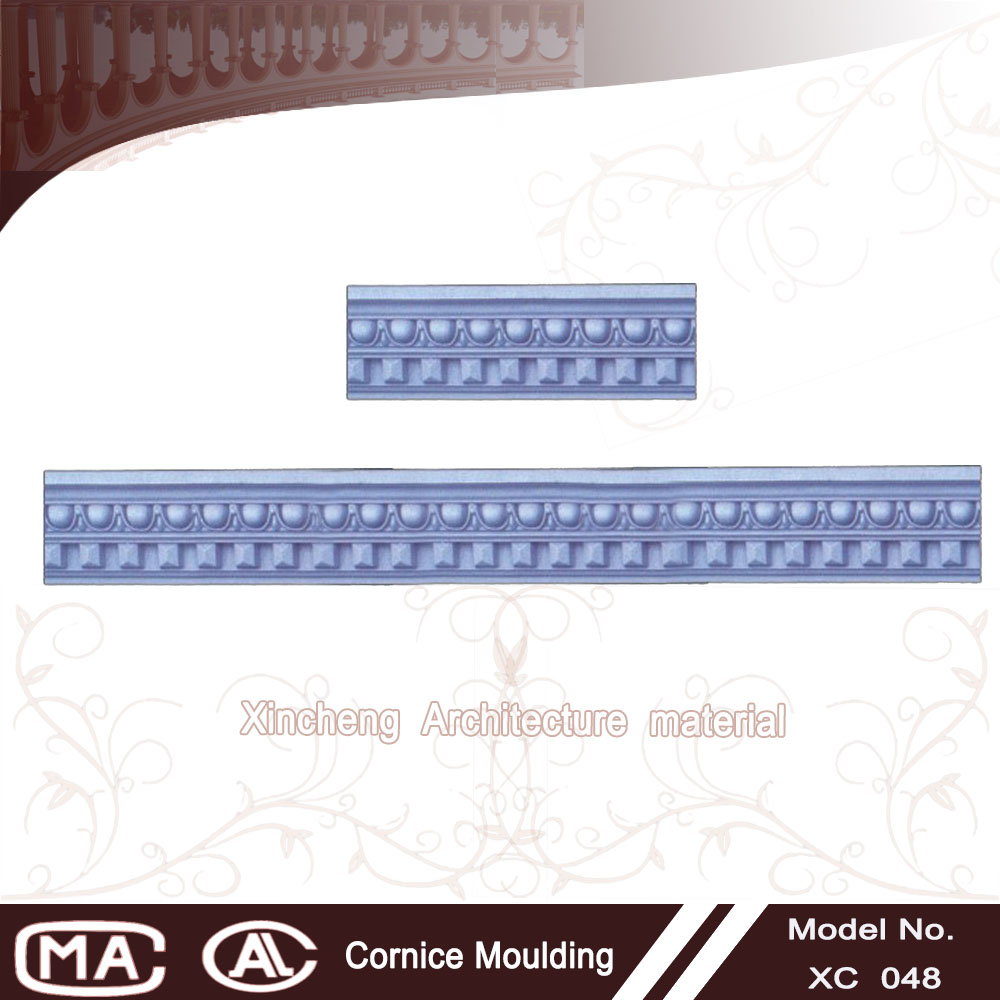

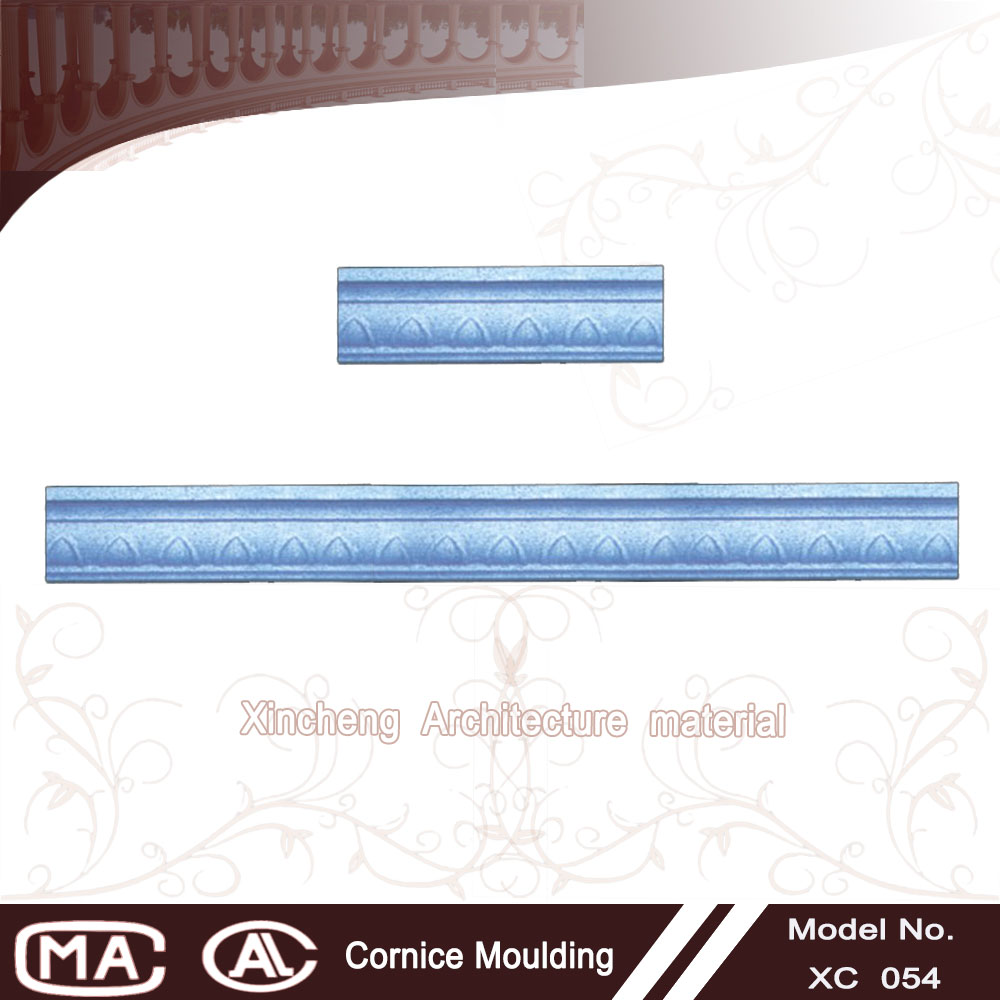

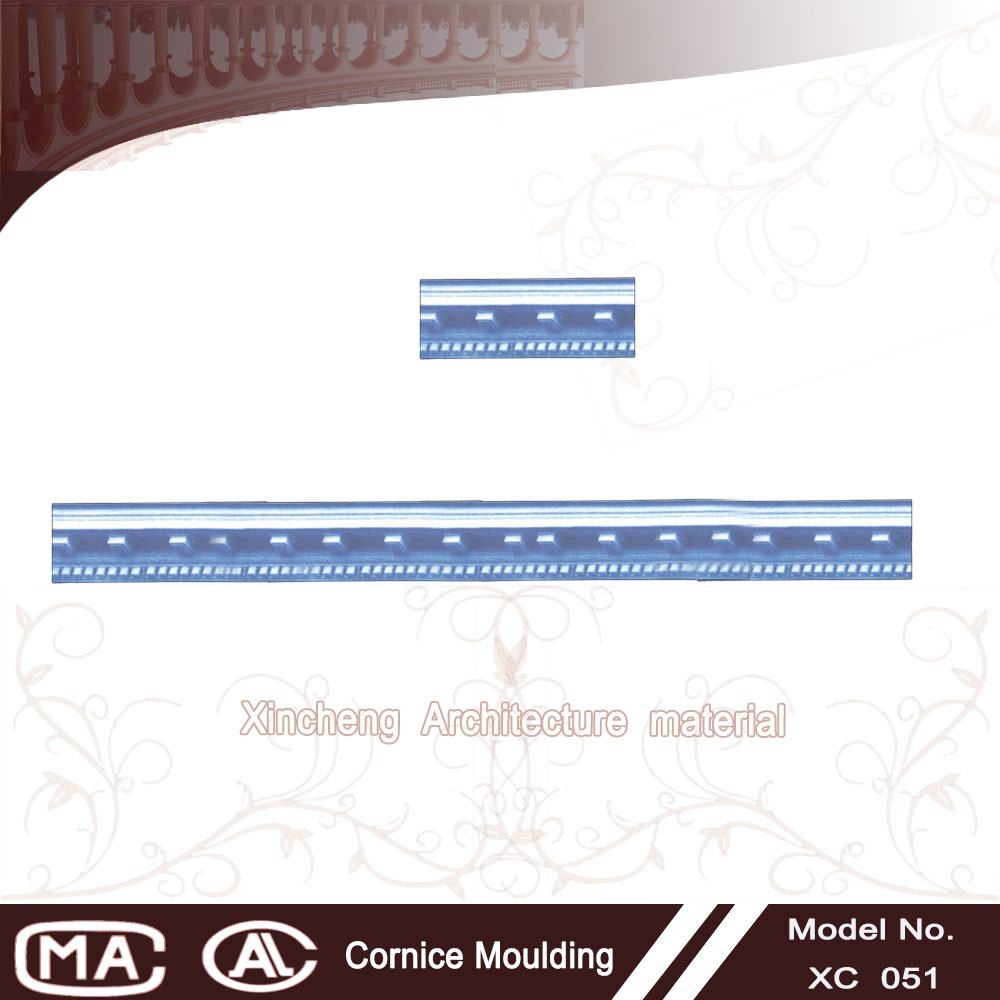

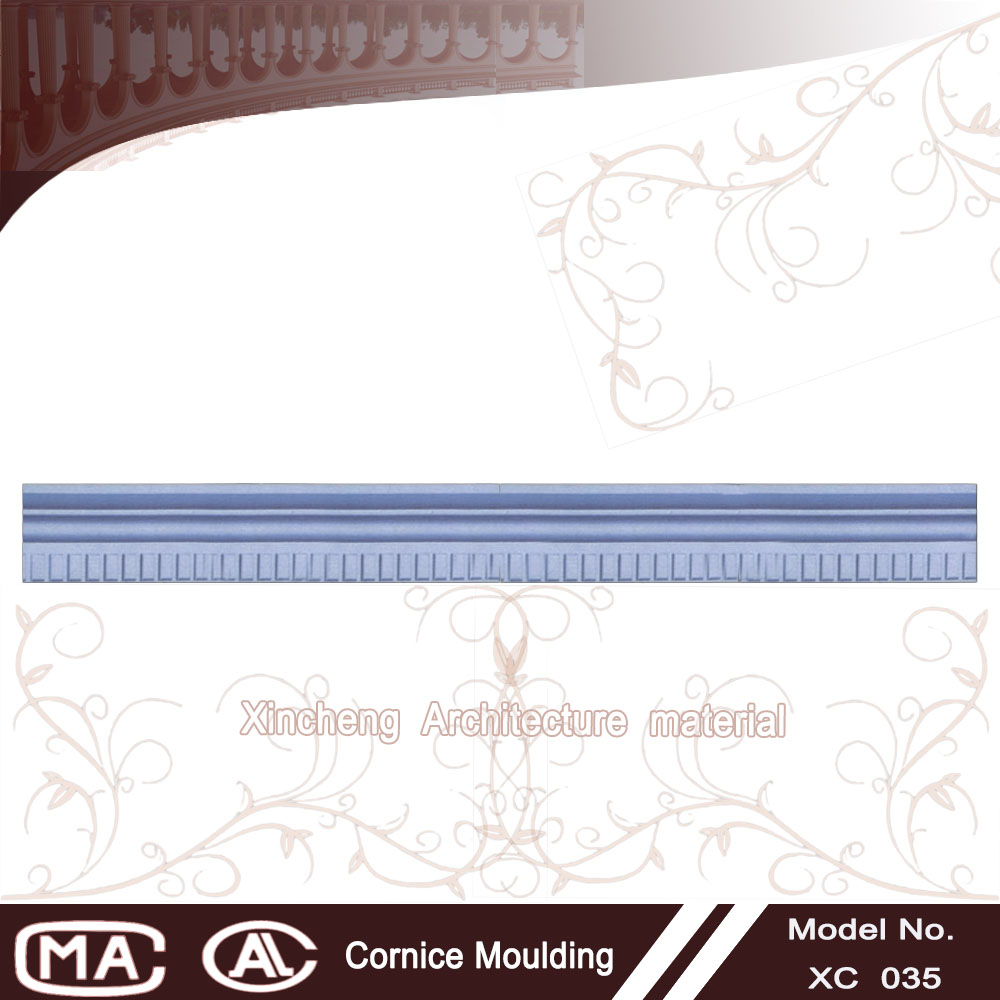

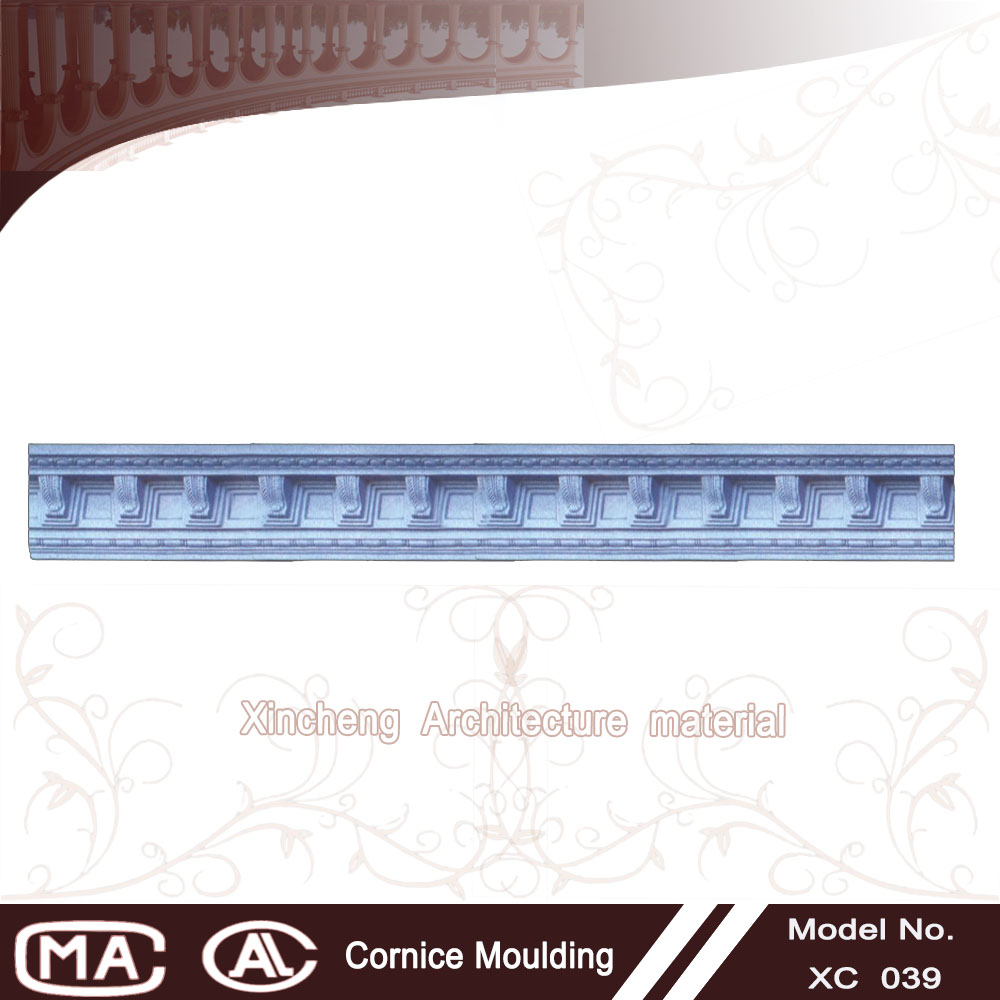

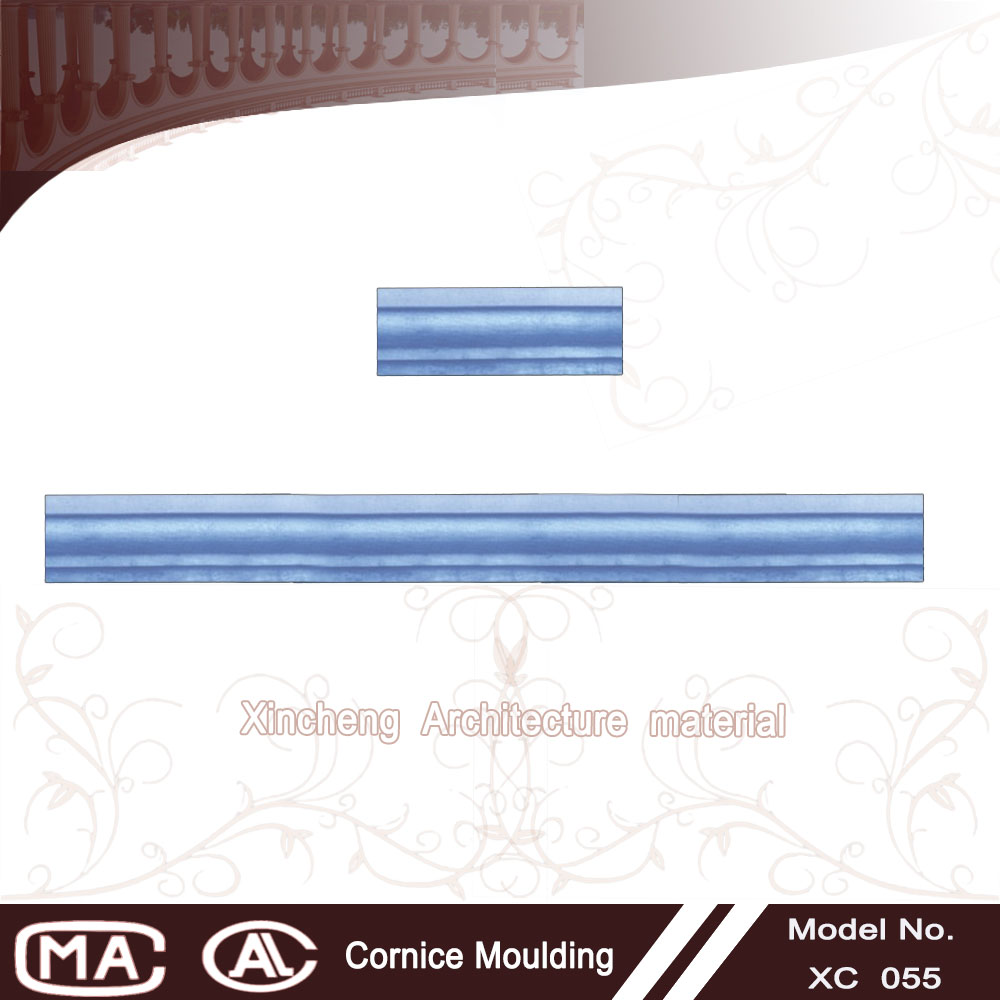

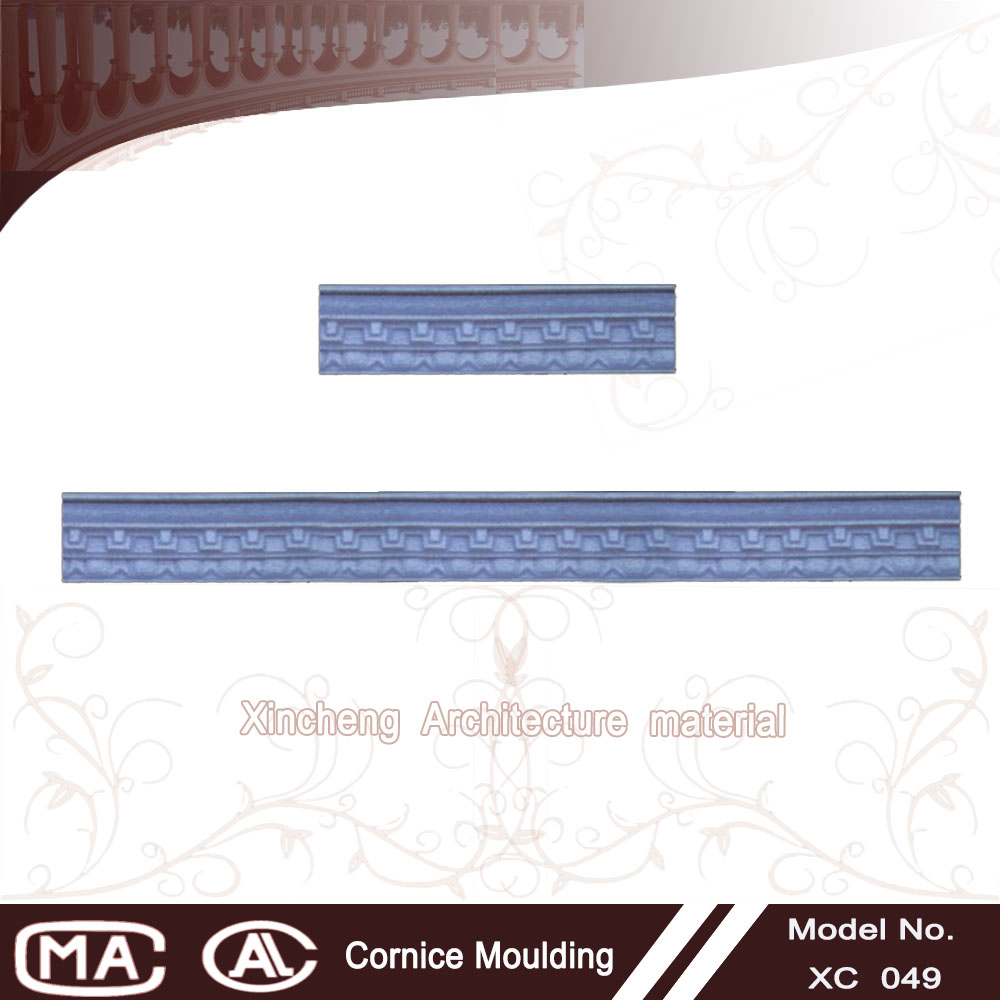

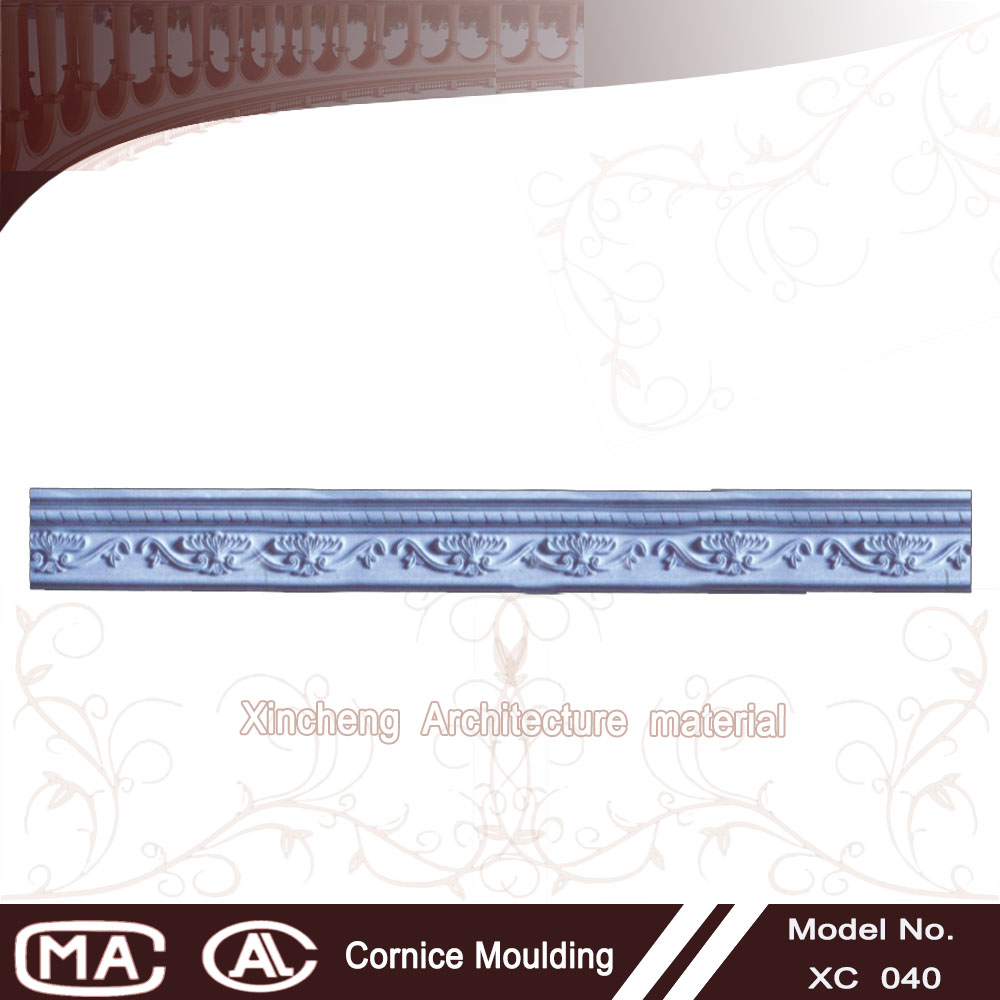

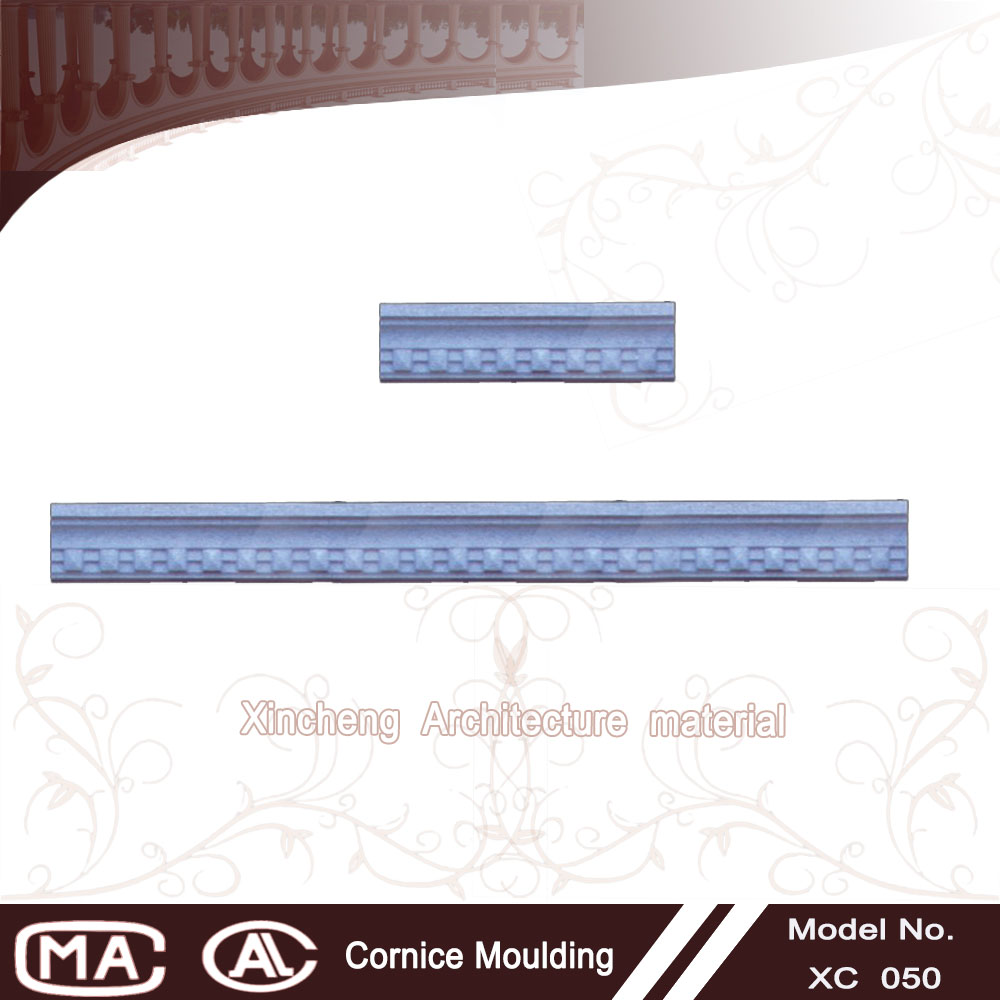

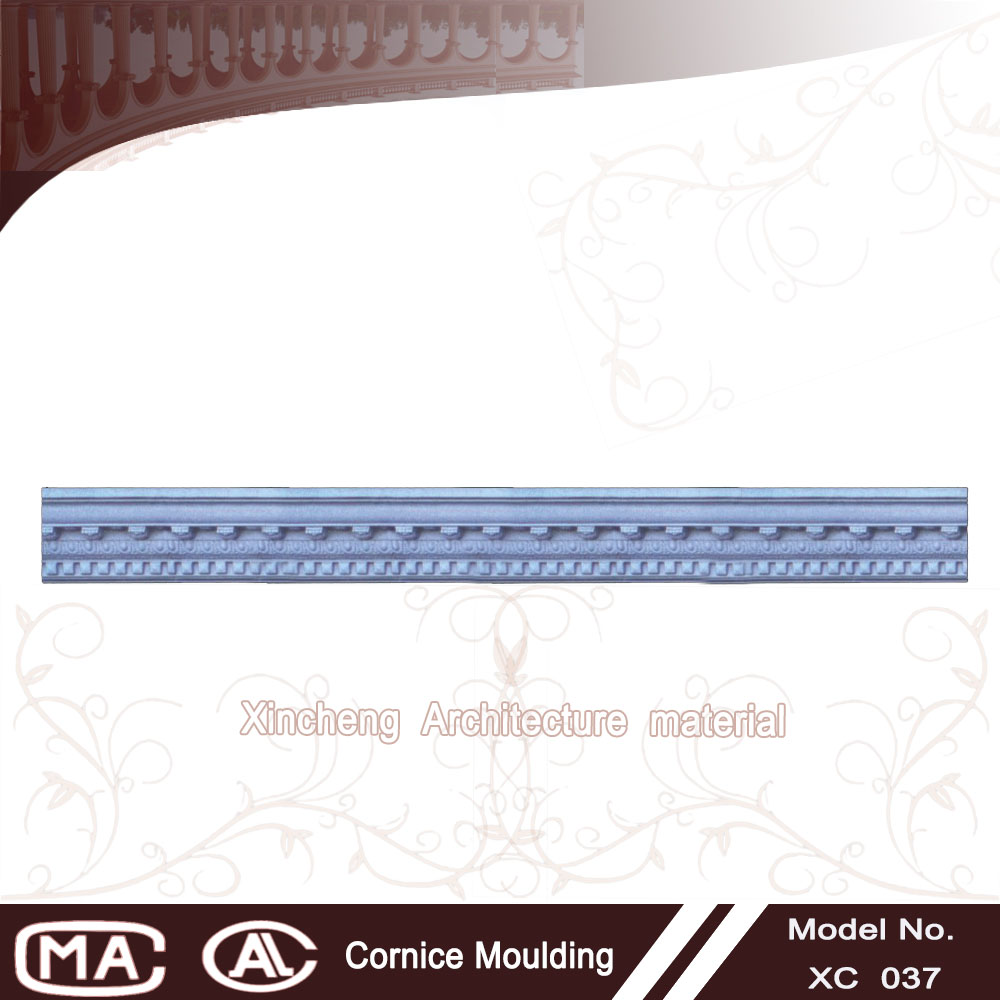

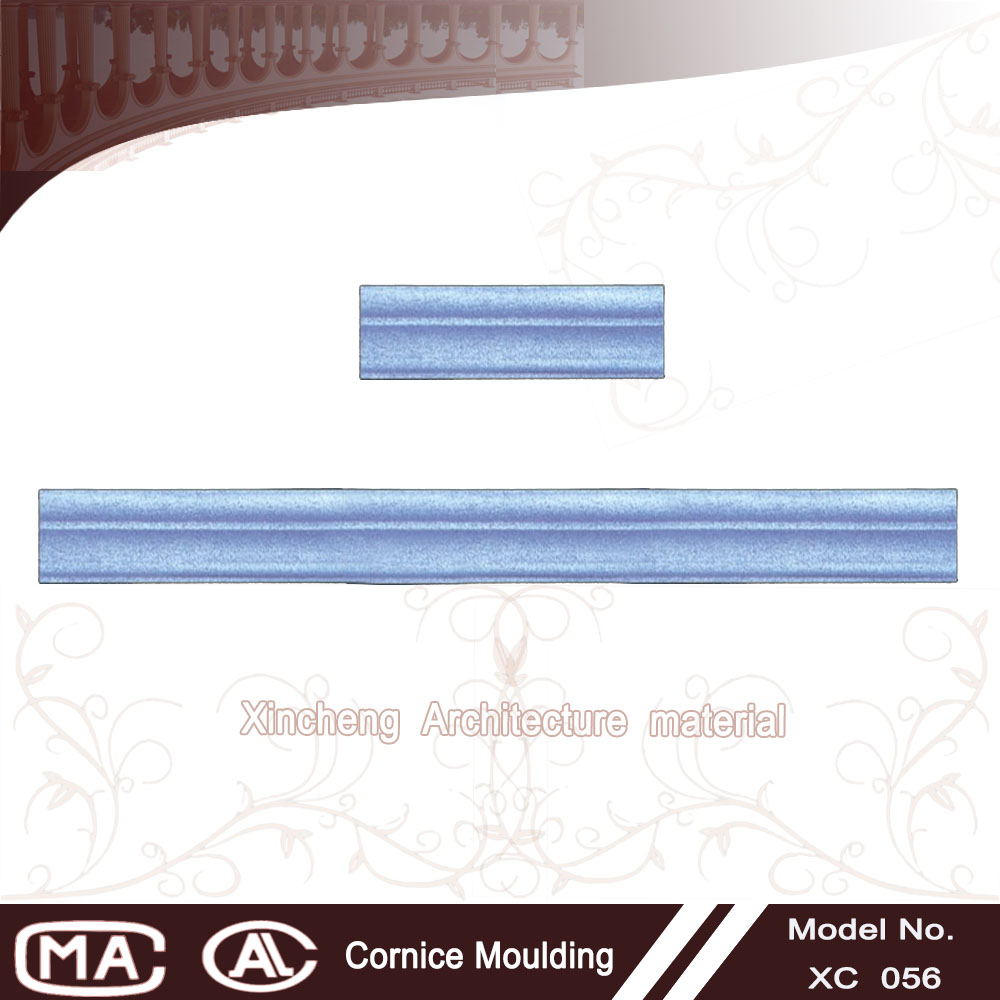

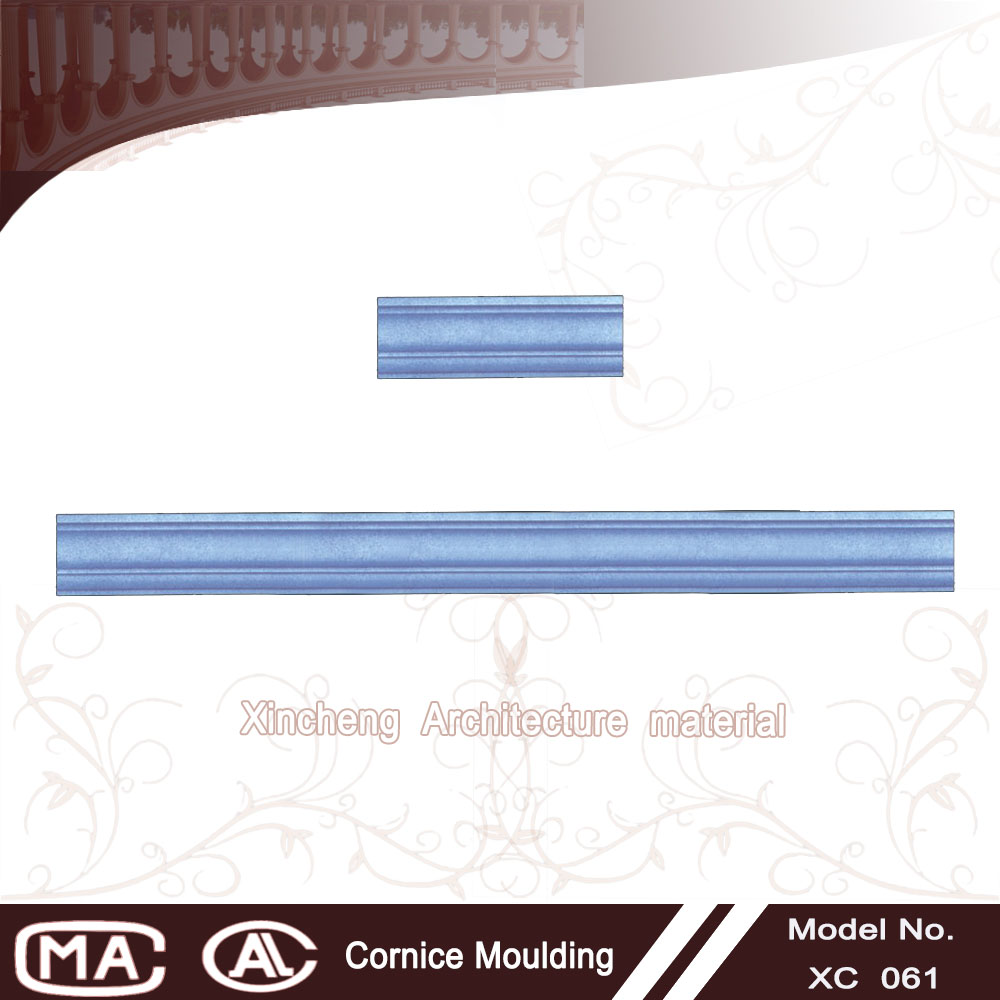

Line-1
Line-1
Line-2
Line-2
Line-3
Line-3
Line-4
Line-4
Line-5
Line-5
Line-6
Line-6
Line-7
Line-7
Line-8
Line-8
Line-9
Line-9
Line-10
Line-10
Line-11
Line-11
Line-12
Line-12
Line-13
Line-13
Line-14
Line-14
Line-15
Line-15
Line-16
Line-16
Line-17
Line-17
Line-18
Line-18
Line-19
Line-19
Line-20
Line-20
Line-21
Line-21
Line-22
Line-22
Line-23
Line-23
Line-24
Line-24
Line-25
Line-25
Line-26
Line-26
Line-27
Line-27
Line-28
Line-28
Line-29
Line-29
Line-30
Line-30

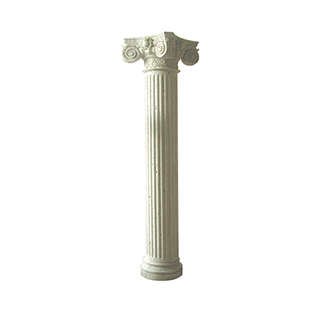

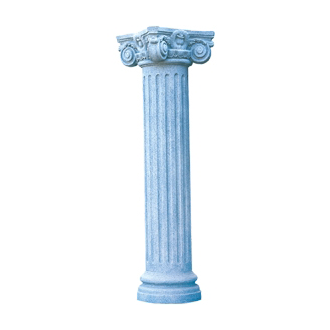

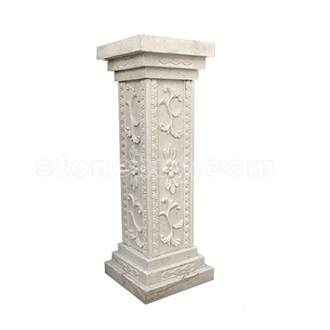

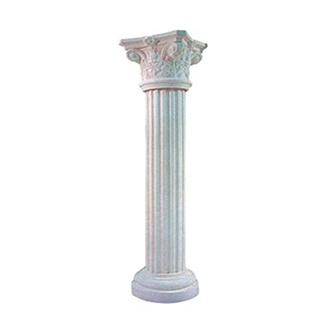

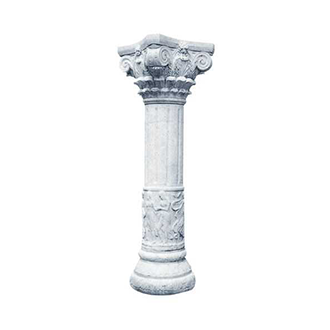

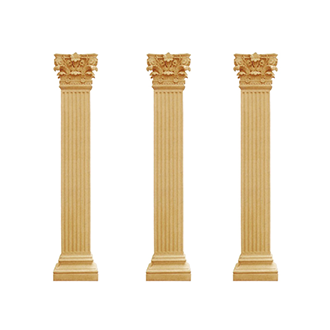

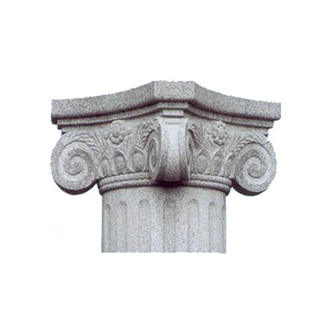

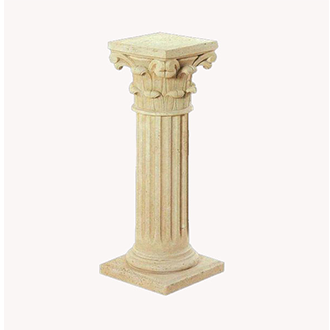

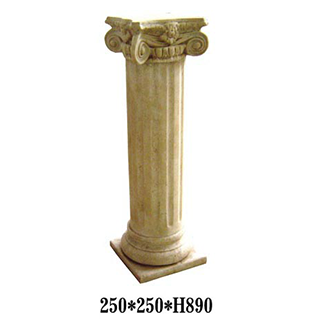

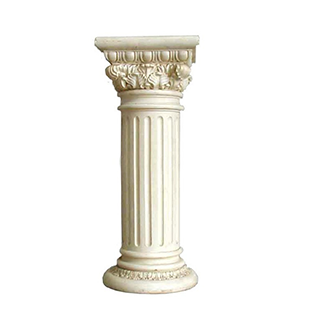

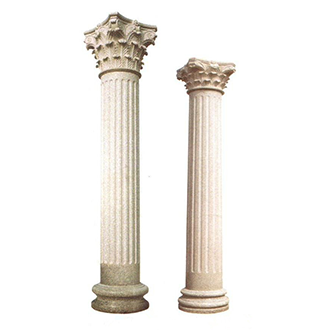

Roman column-1
Roman column-1
Roman column-2
Roman column-2
Roman column-3
Roman column-3
Roman column-4
Roman column-4
Roman column-5
Roman column-5
Roman column-6
Roman column-6
Roman column-7
Roman column-7
Roman column-8
Roman column-8
Roman column-9
Roman column-9
Roman column-10
Roman column-10
Roman column-11
Roman column-11
Roman column-12
Roman column-12

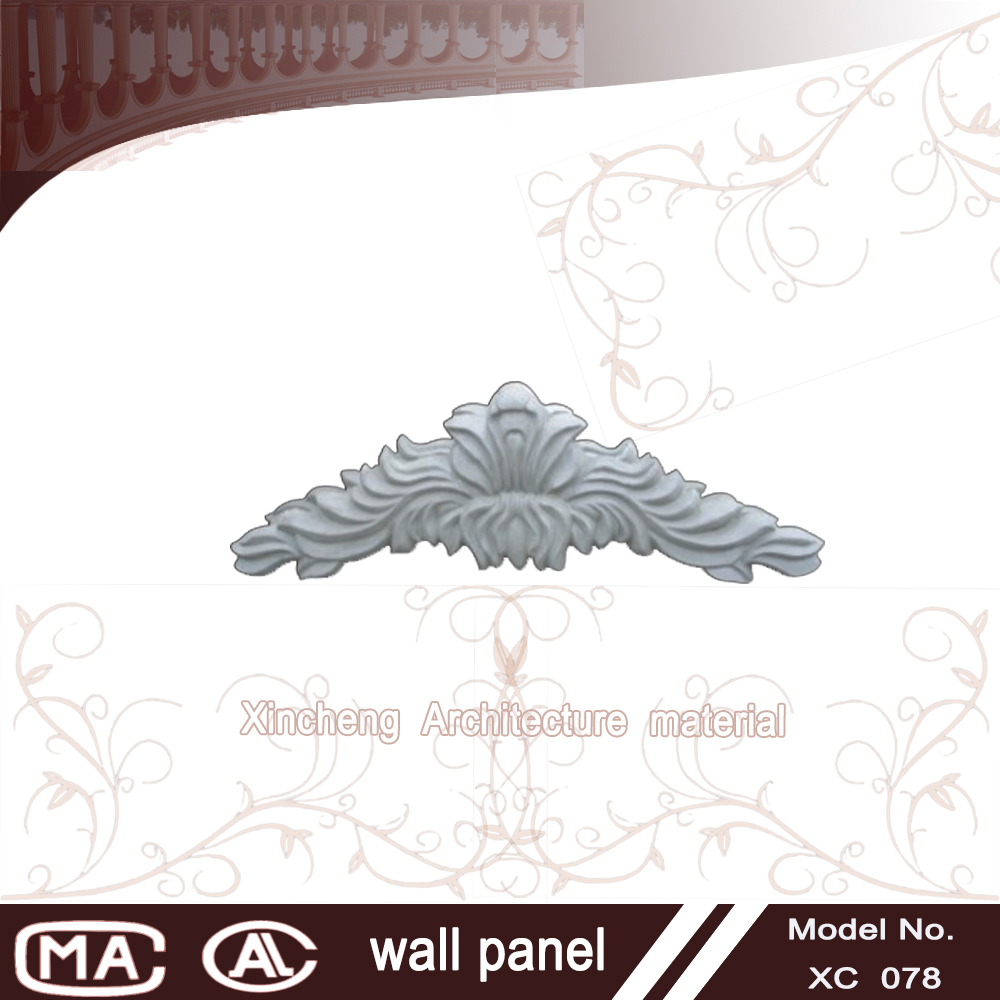

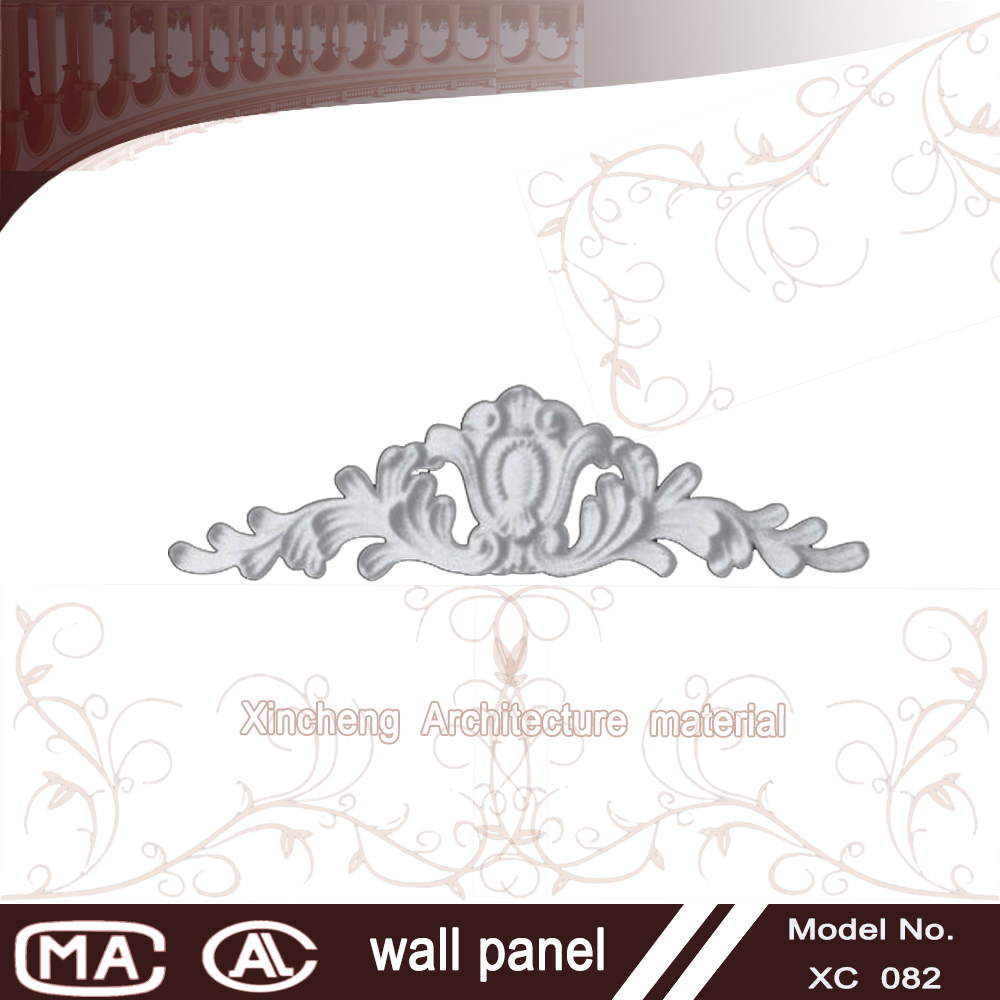

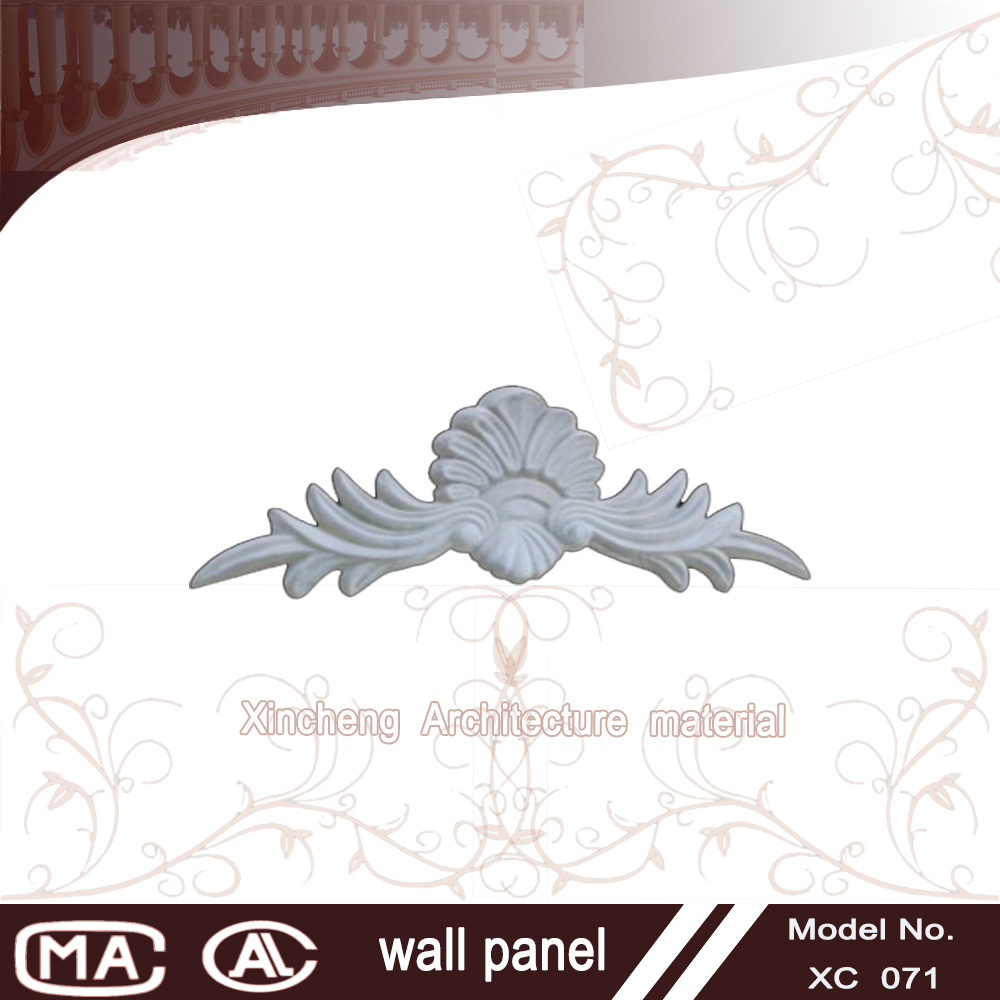

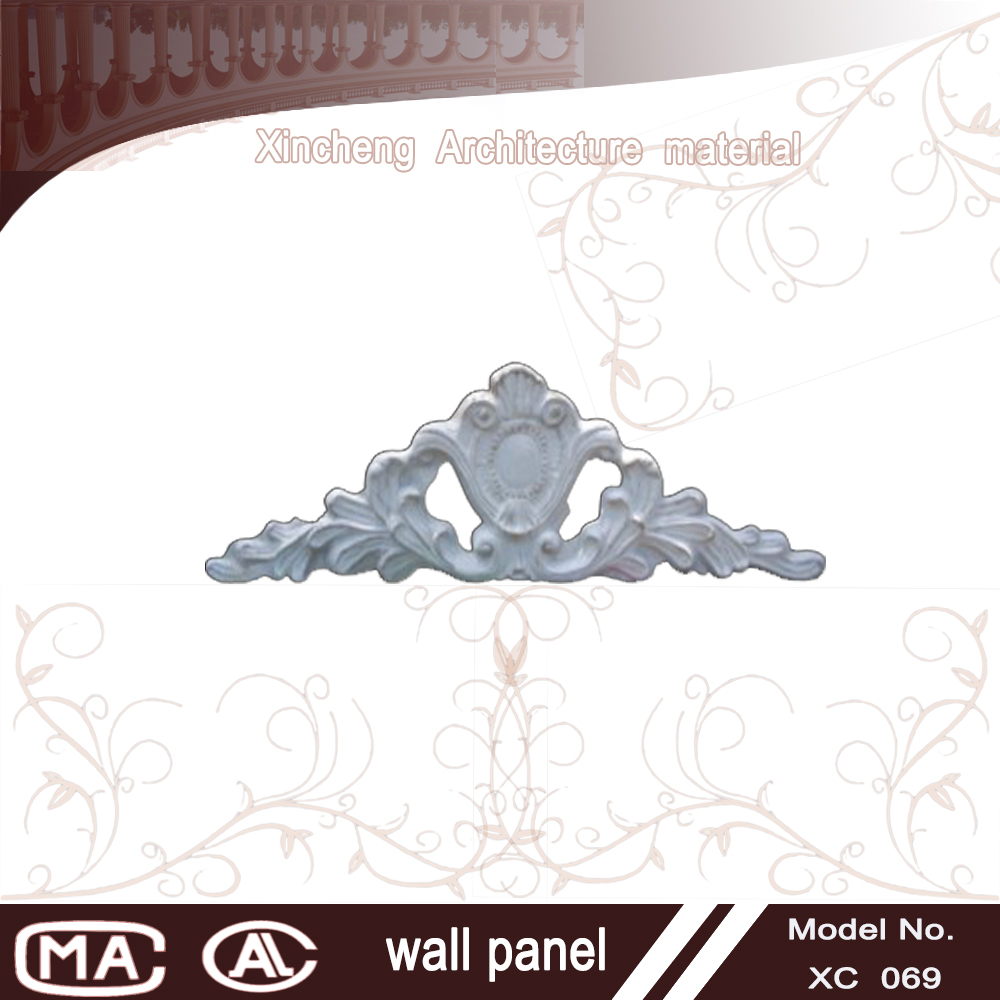

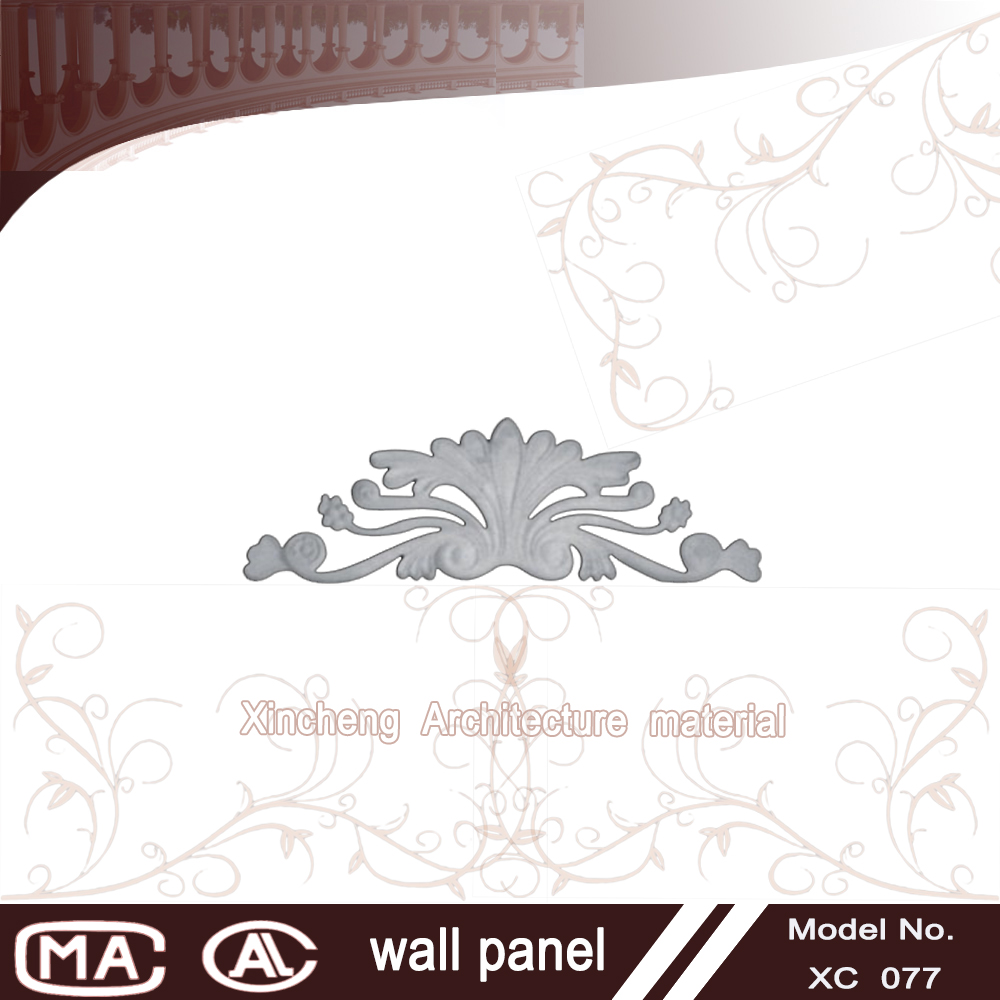

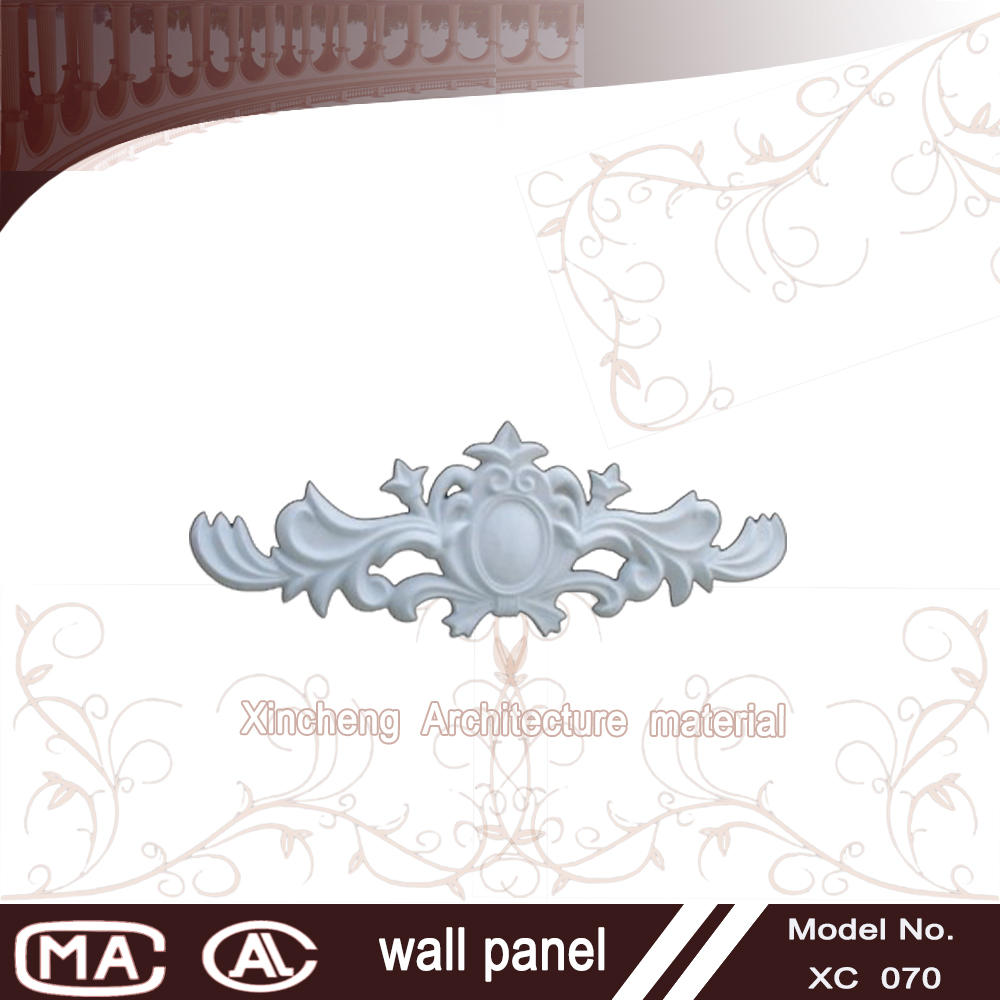

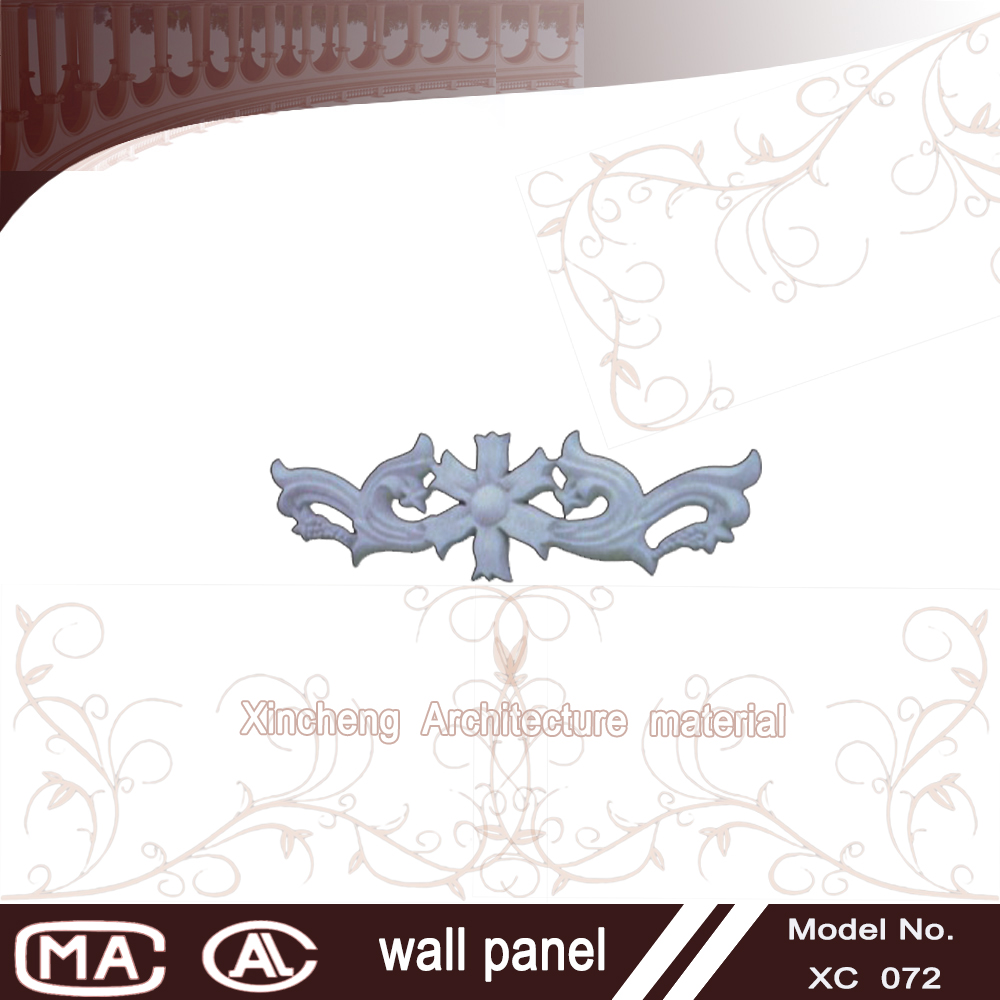

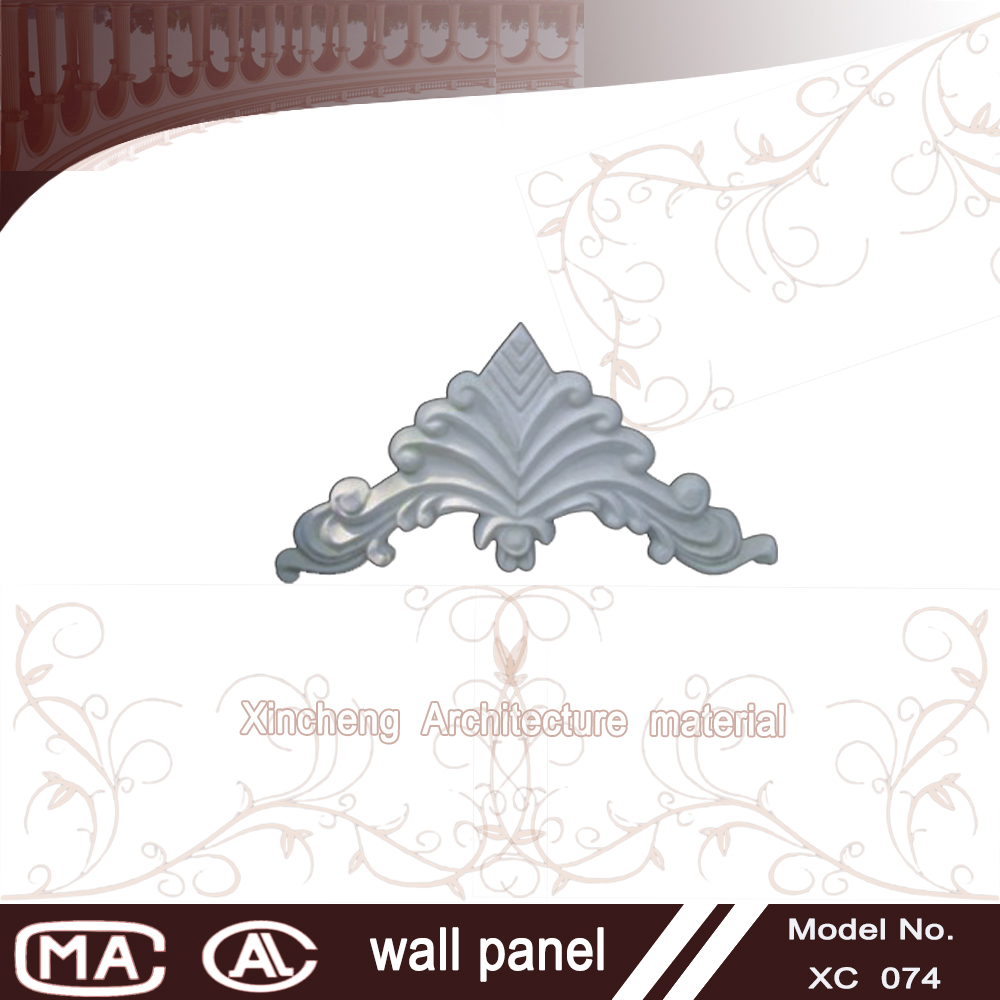

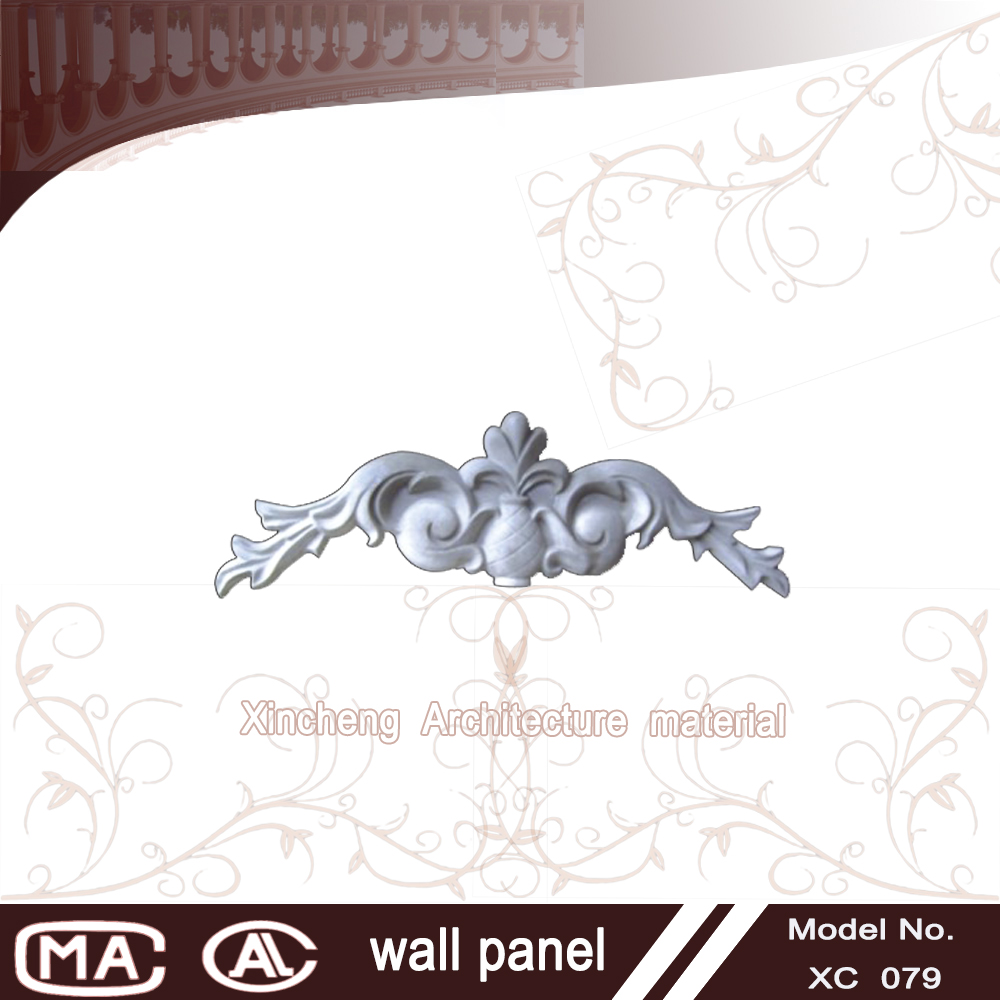

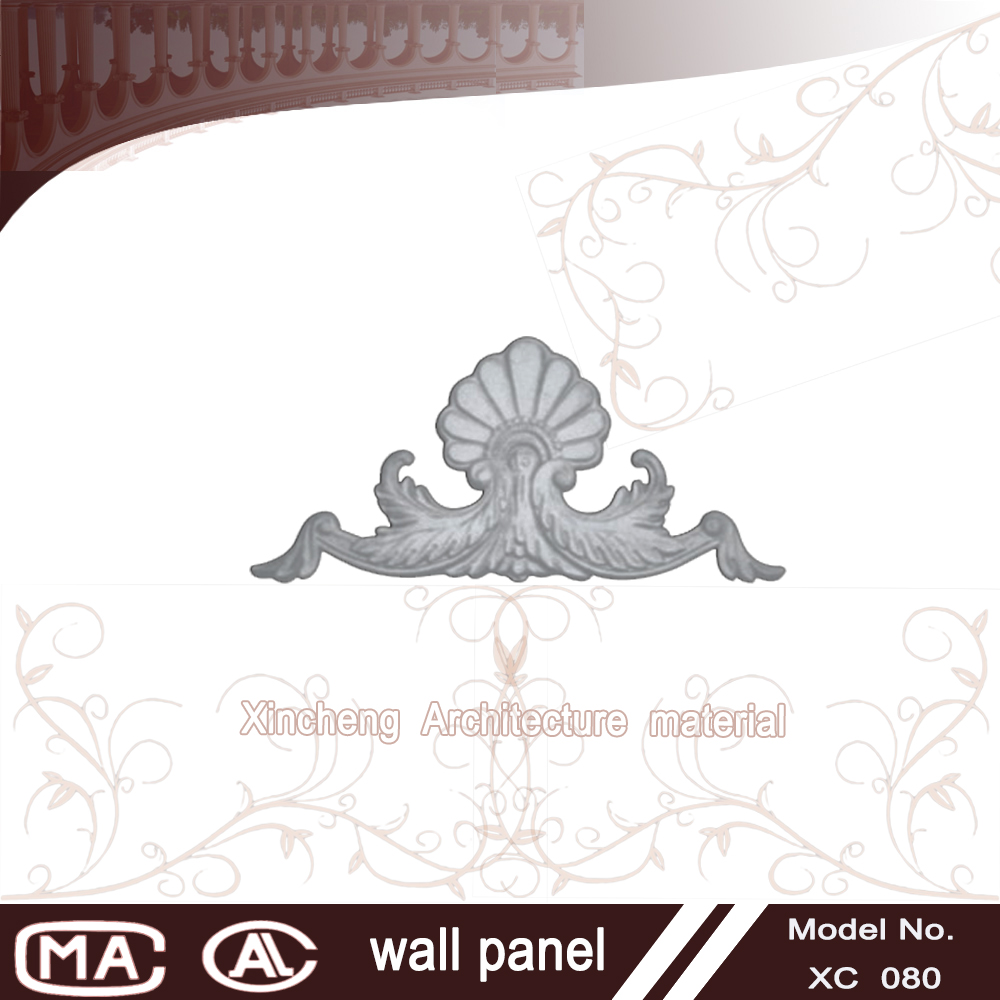

Floriation-1
Floriation-1
Floriation-2
Floriation-2
Floriation-3
Floriation-3
Floriation-4
Floriation-4
Floriation-5
Floriation-5
Floriation-6
Floriation-6
Floriation-7
Floriation-7
Floriation-8
Floriation-8
Floriation-9
Floriation-9
Floriation-10
Floriation-10
Floriation-11
Floriation-11
Floriation-12
Floriation-12
Floriation-13
Floriation-13
Floriation-14
Floriation-14
Floriation-15
Floriation-15
Floriation-16
Floriation-16
Floriation-25
Floriation-25
Floriation-26
Floriation-26
Floriation-27
Floriation-27
Floriation-28
Floriation-28
Floriation-29
Floriation-29

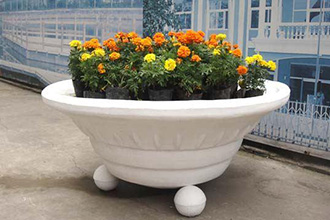

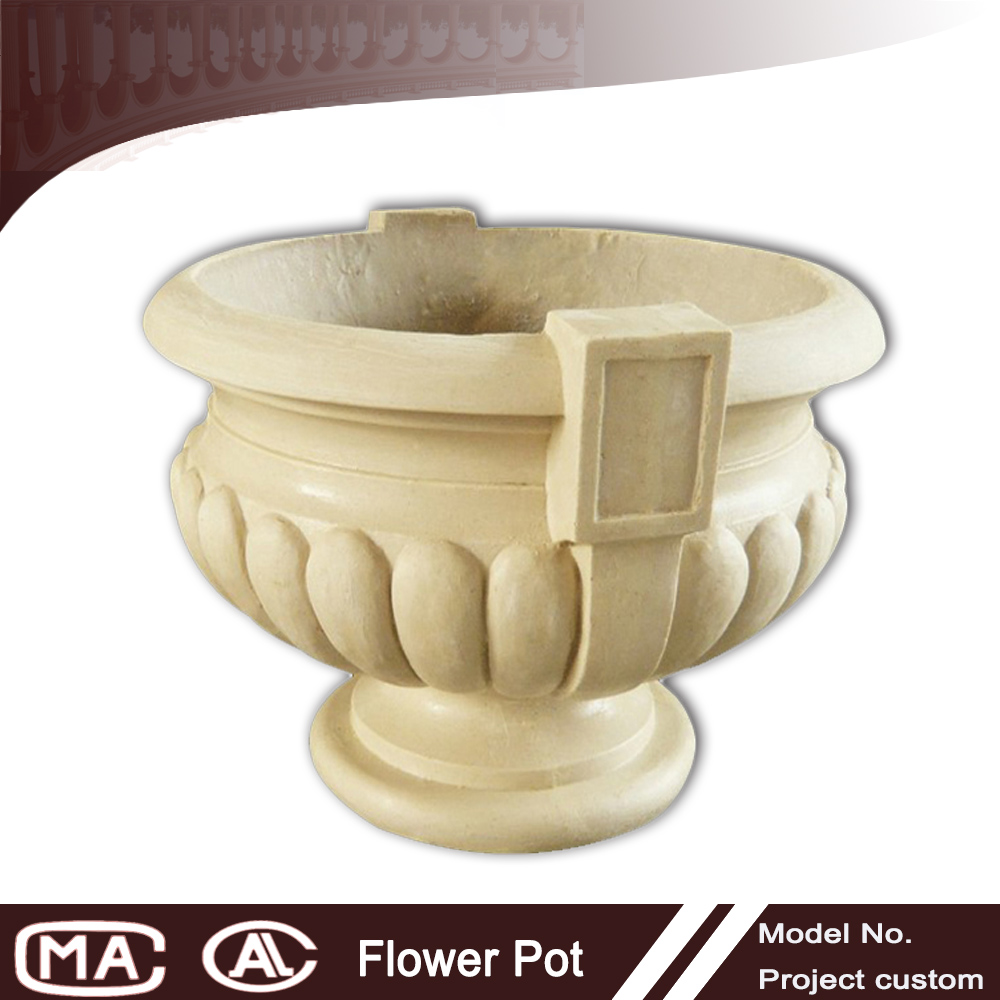

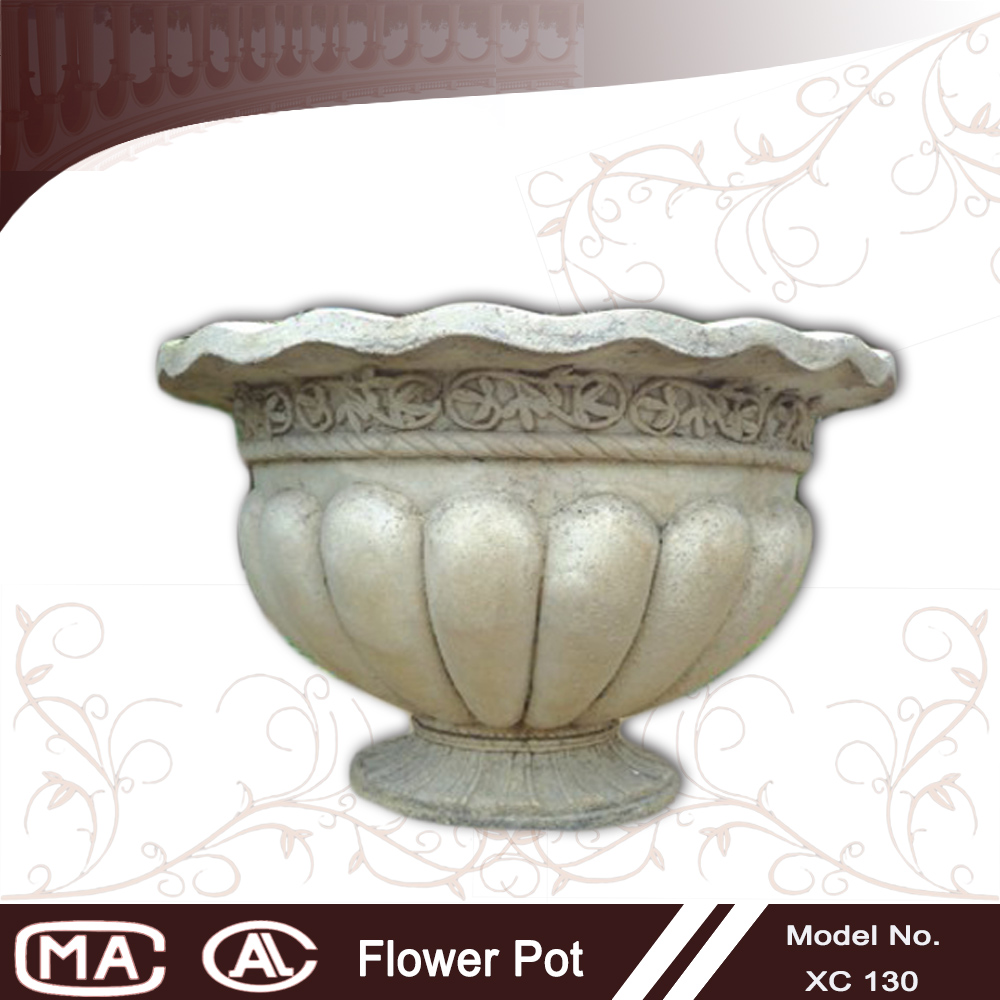

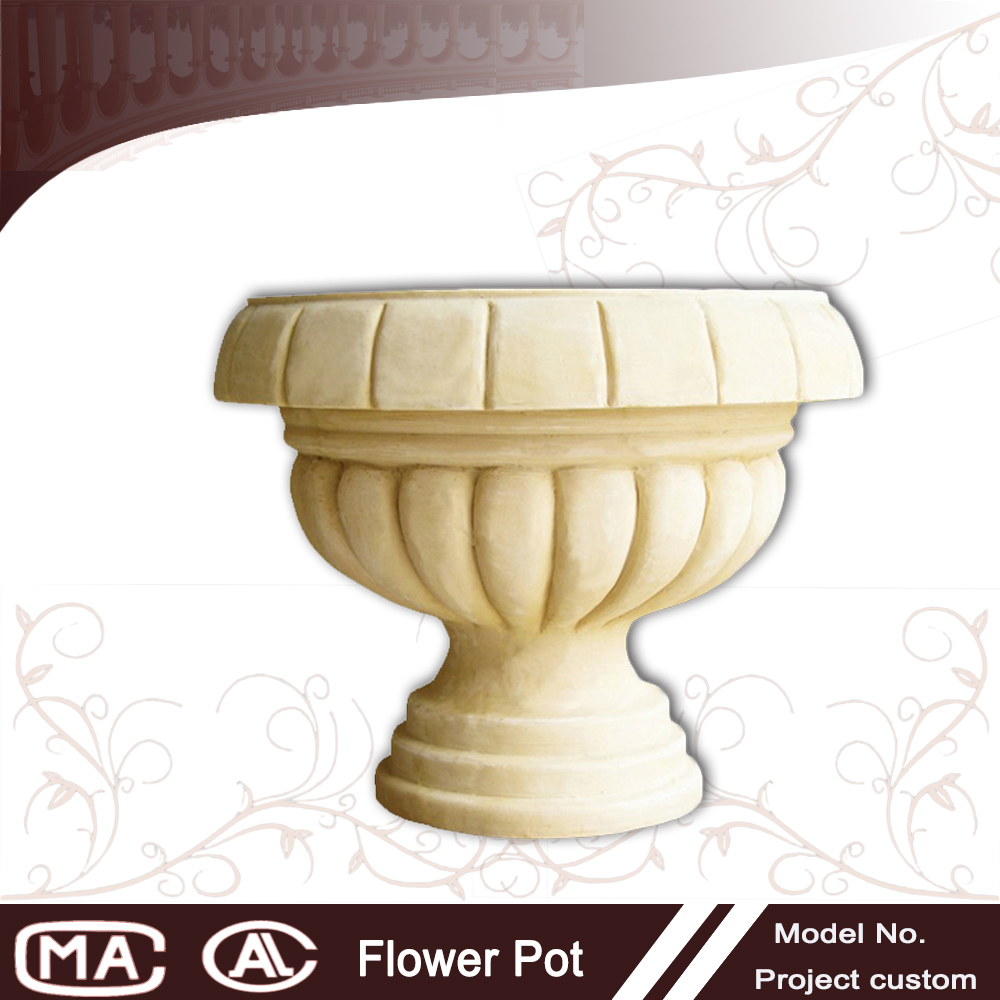

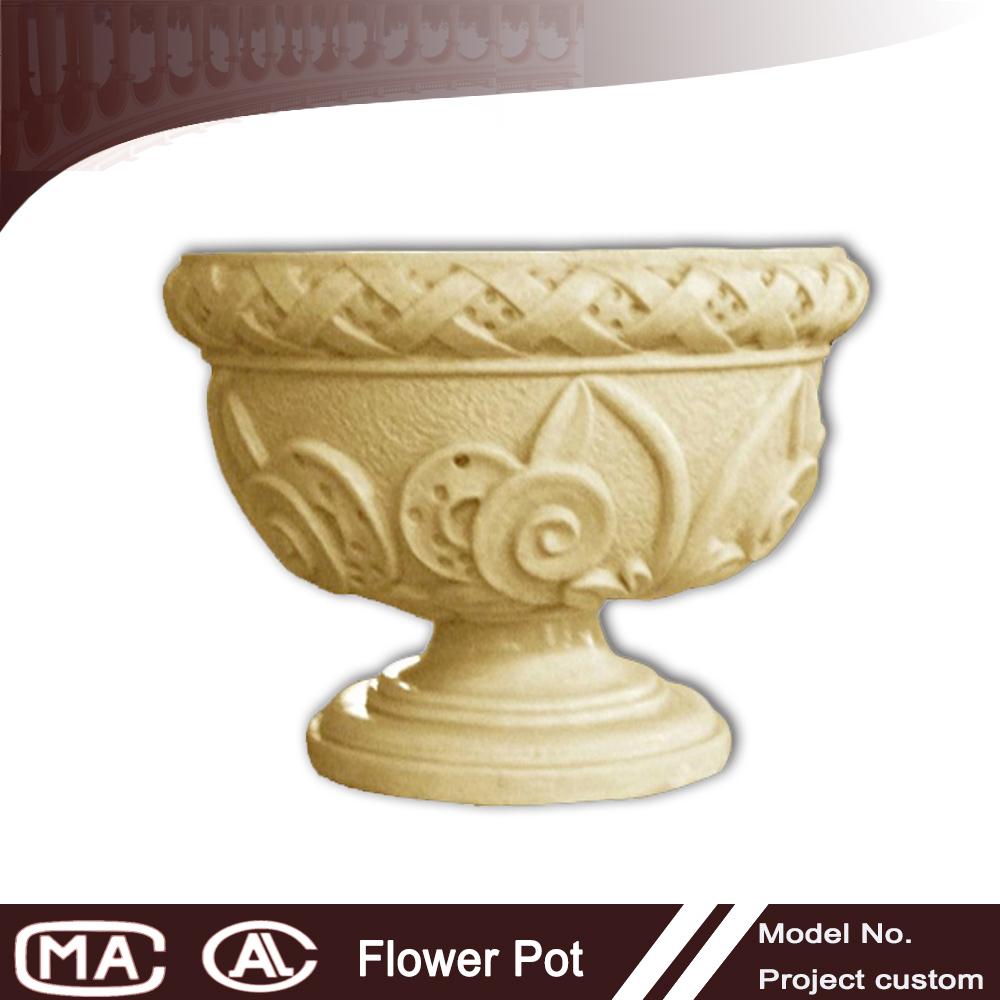

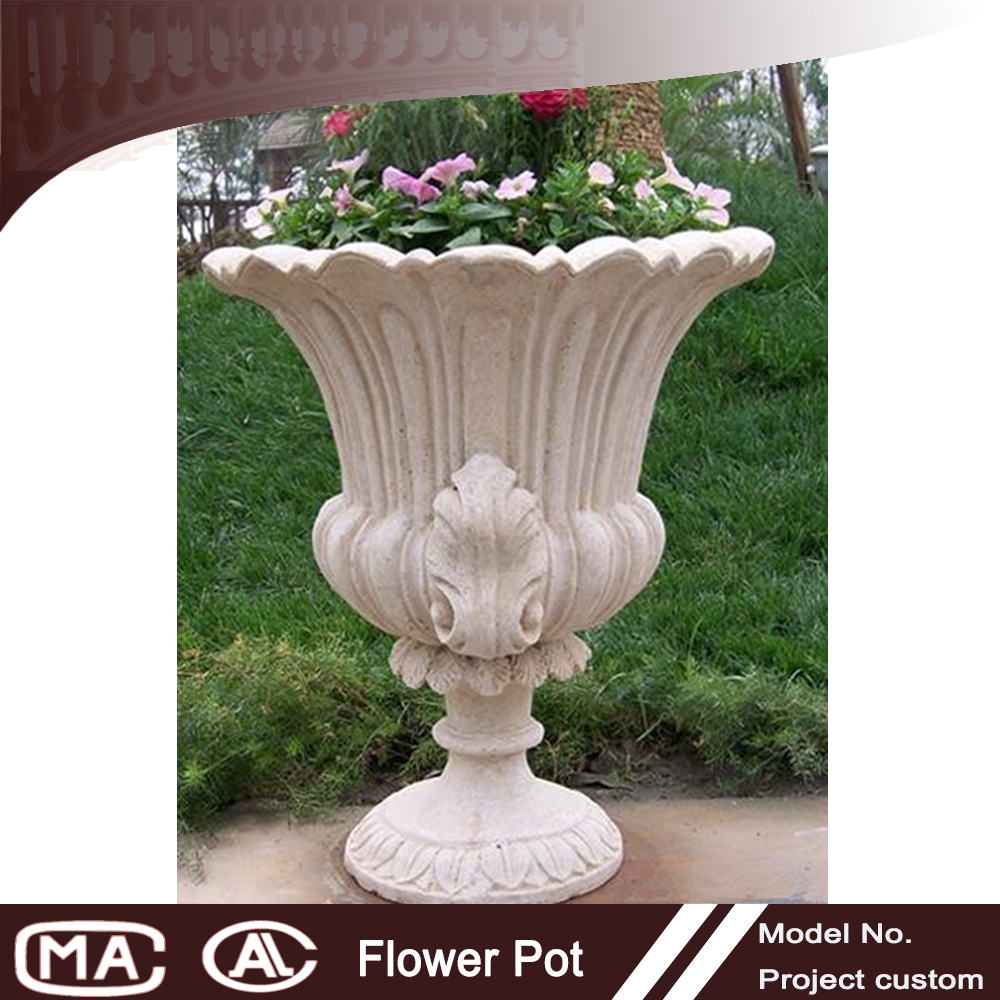

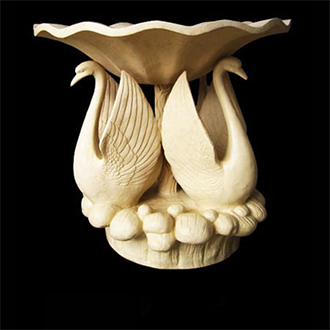

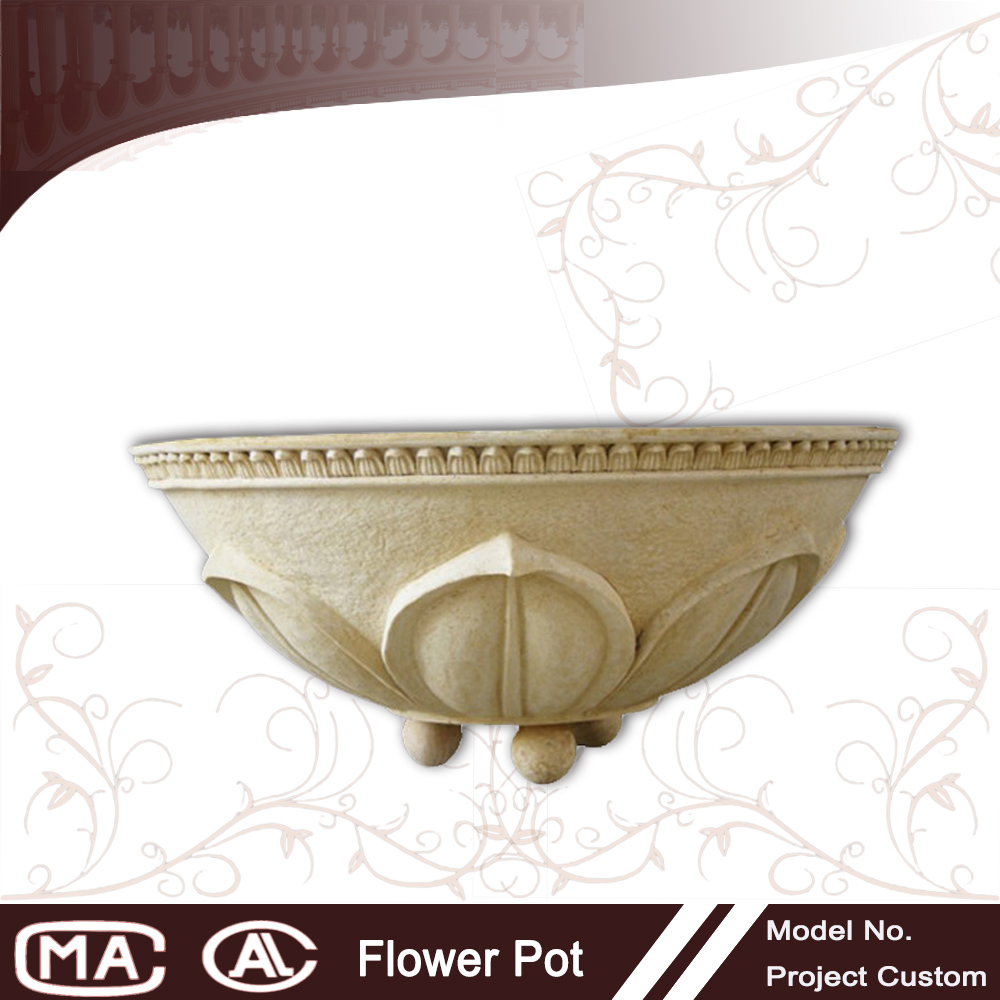

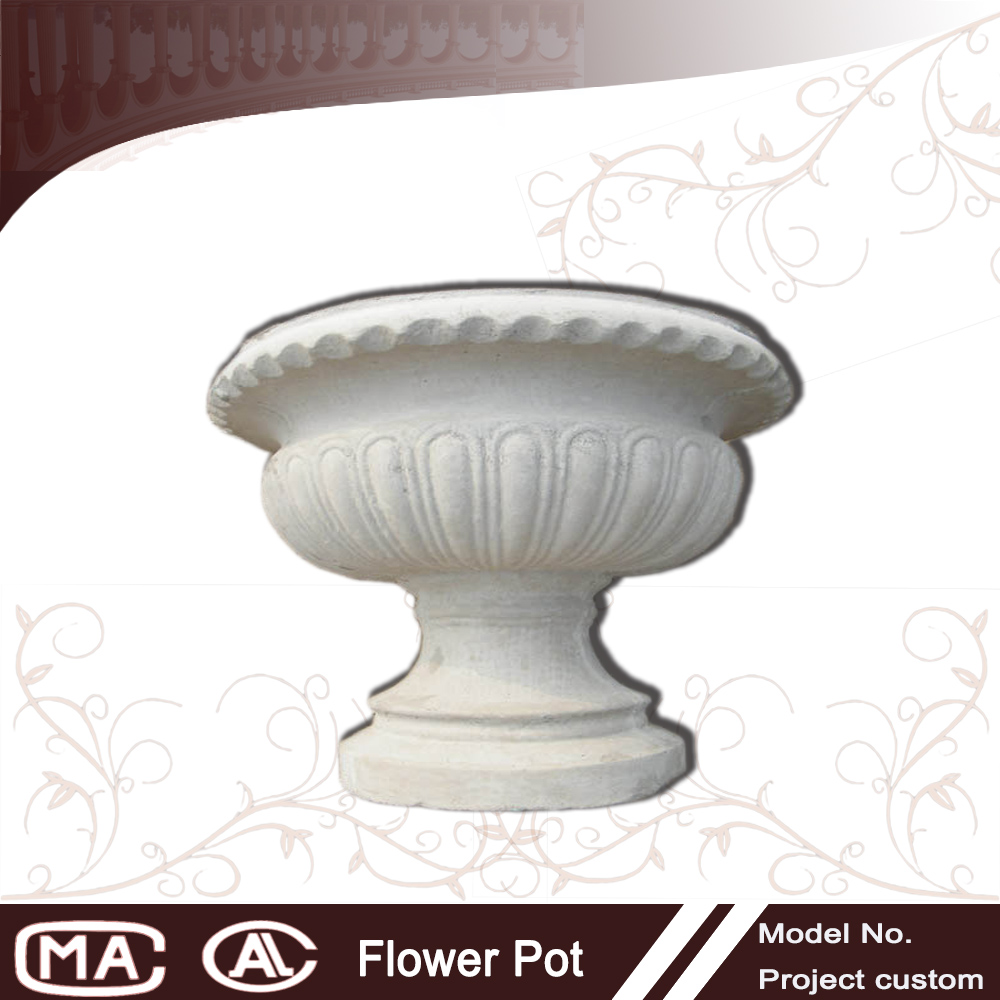

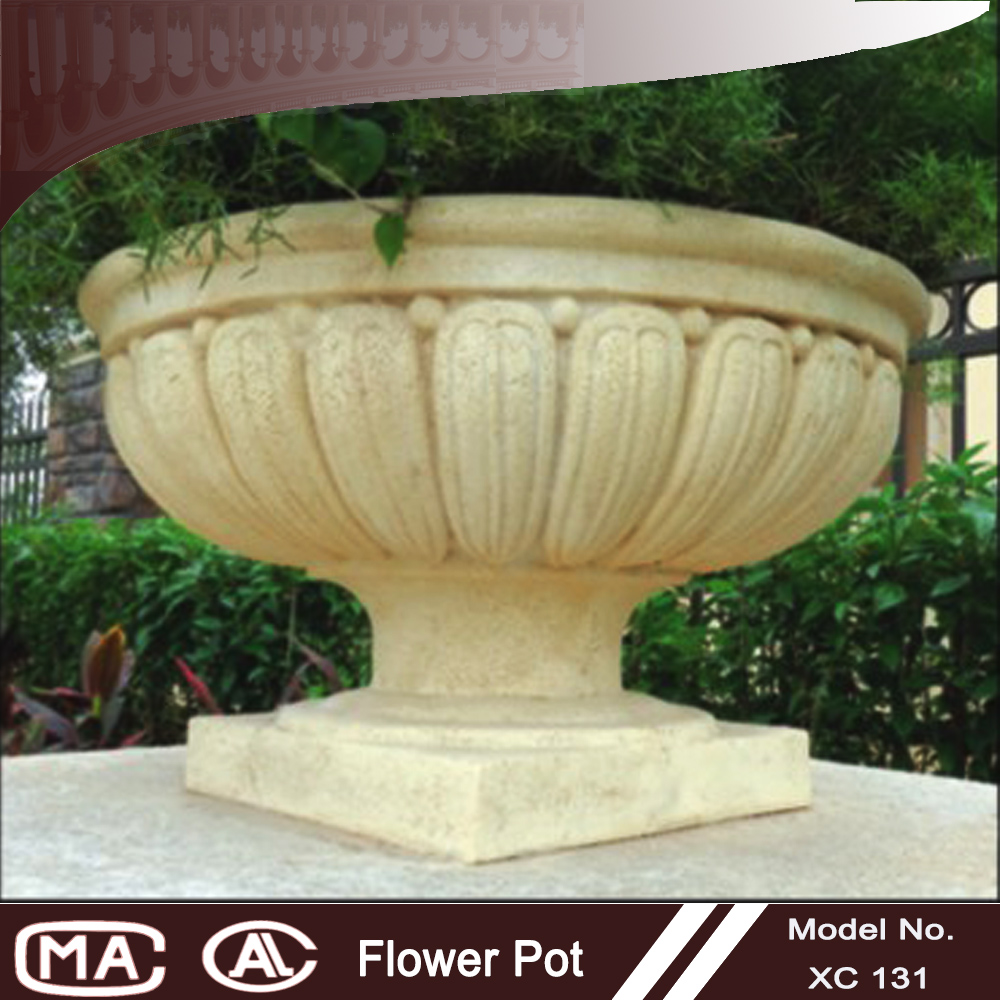

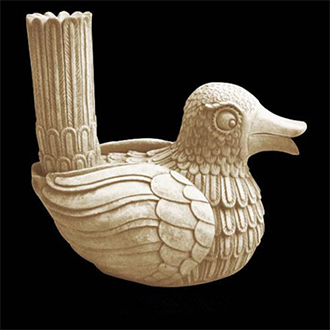

Flowerpot-9
Flowerpot-9
Flowerpot-10
Flowerpot-10
Flowerpot-11
Flowerpot-11
Flowerpot-12
Flowerpot-12
Flowerpot-13
Flowerpot-13
Flowerpot-14
Flowerpot-14
Flowerpot-16
Flowerpot-16
Flowerpot-17
Flowerpot-17

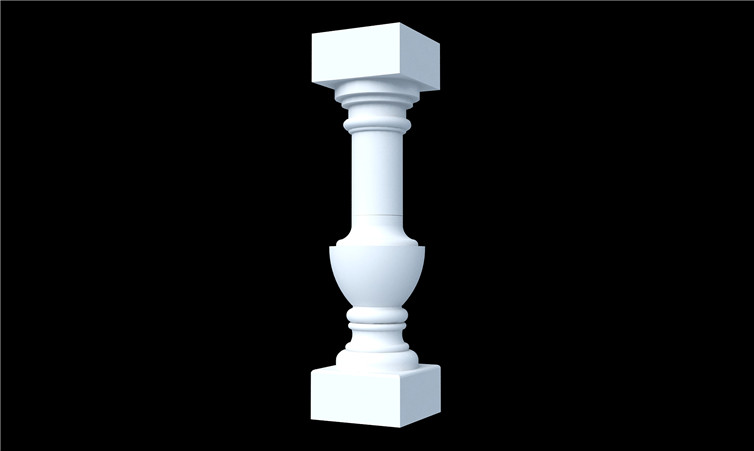

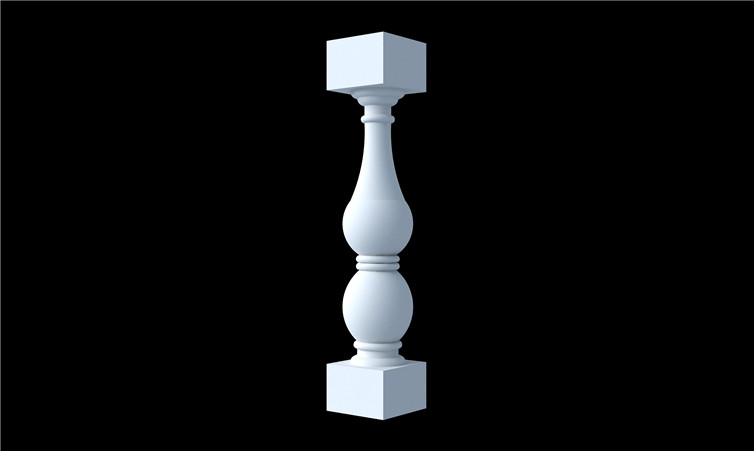

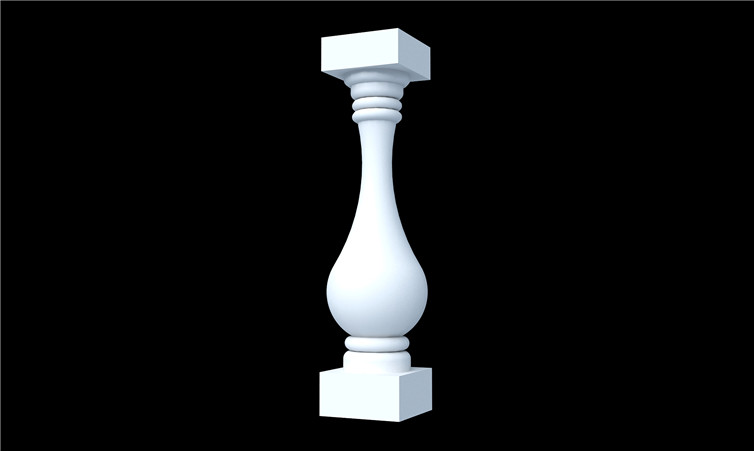

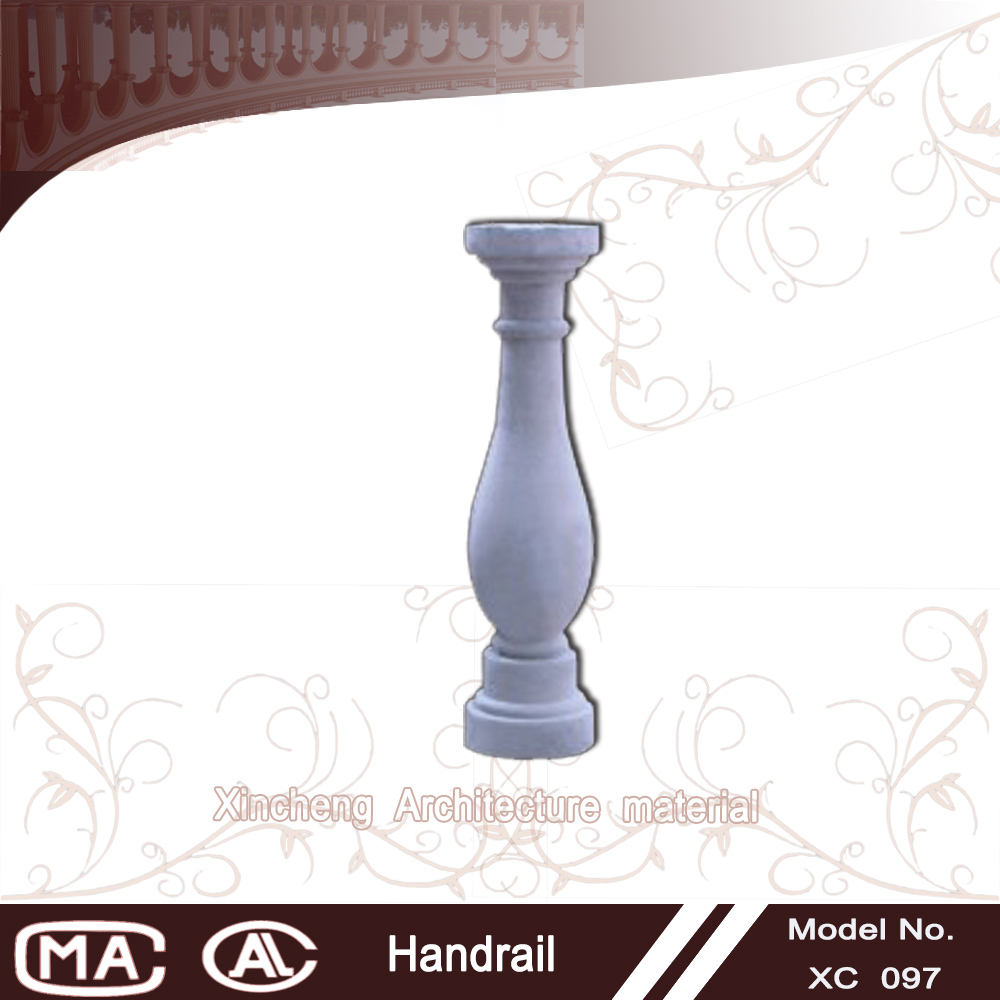

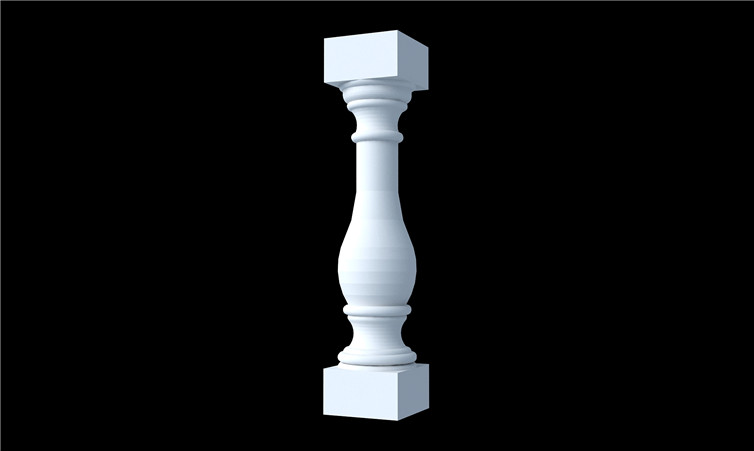

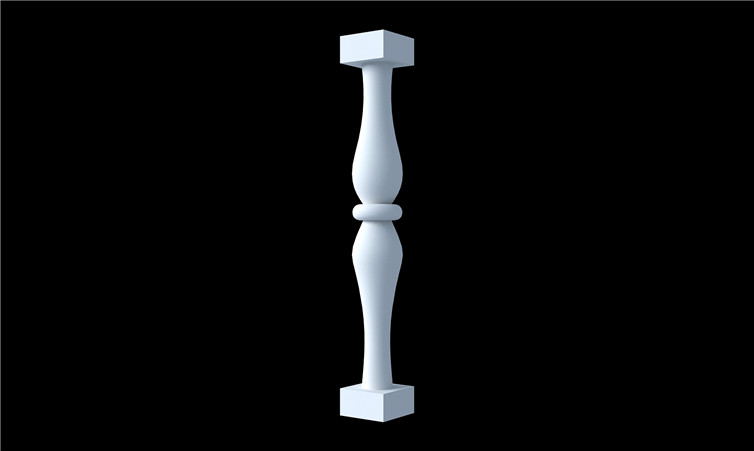

Railing-1
Railing-1

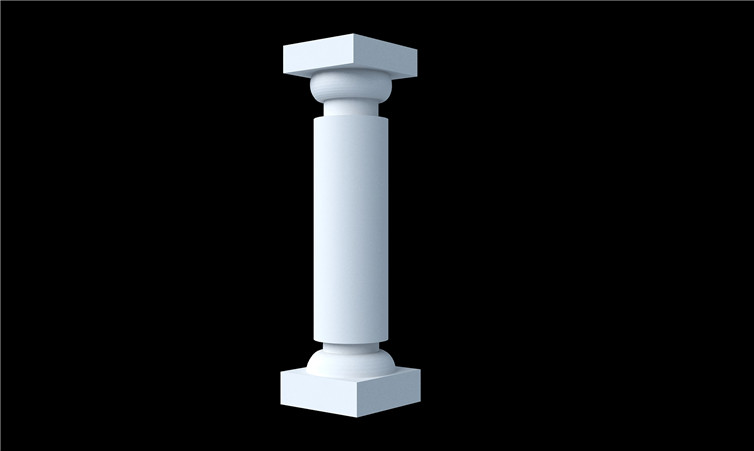

Railing-2
Railing-2
Railing-3
Railing-3
Railing-4
Railing-4
Railing-5
Railing-5
Railing-6
Railing-6
Railing-1
Railing-1

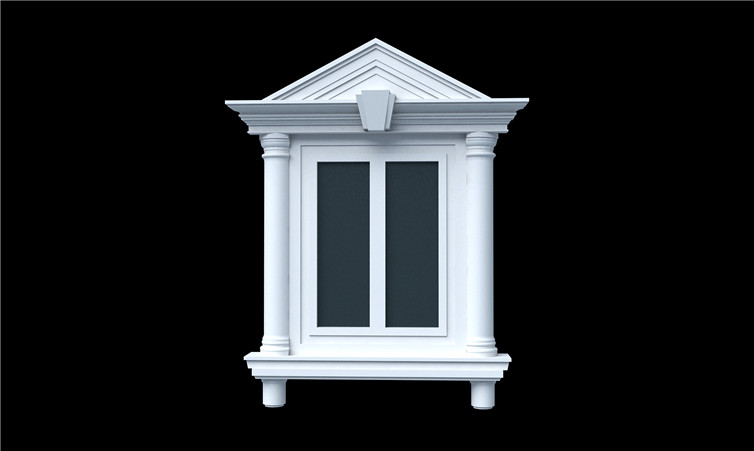

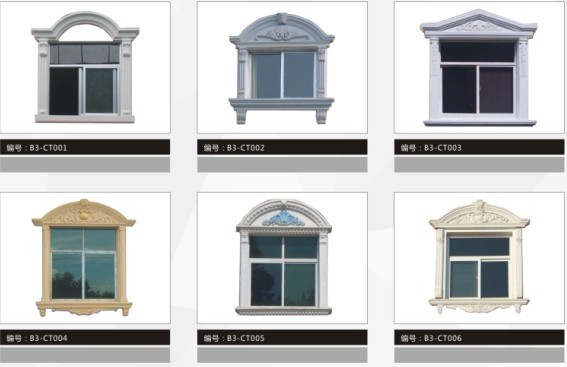

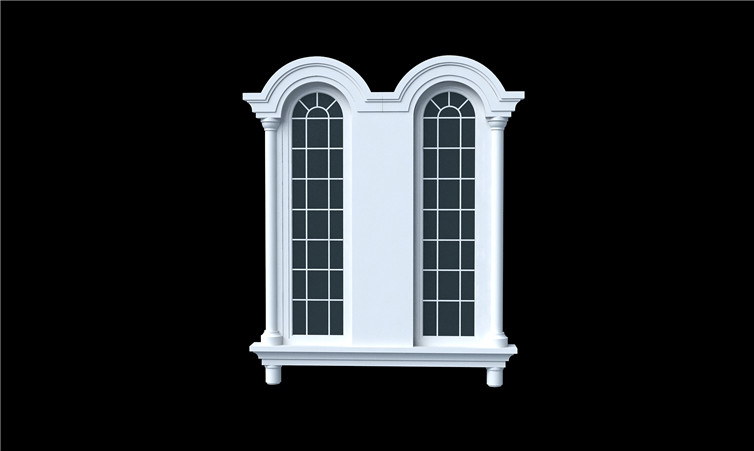

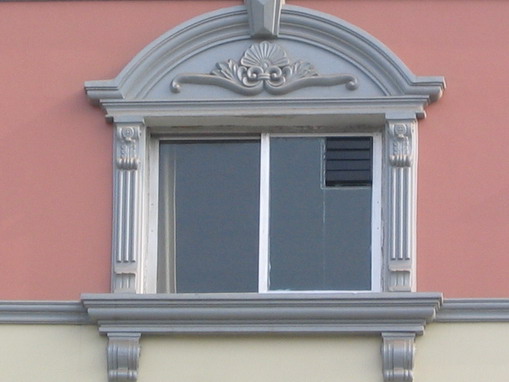

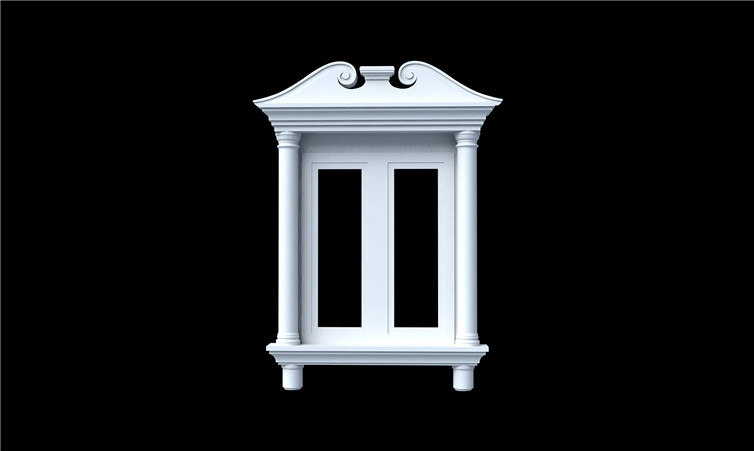

Window frame-1
Window frame-1
Window frame-2
Window frame-2
Window frame-3
Window frame-3

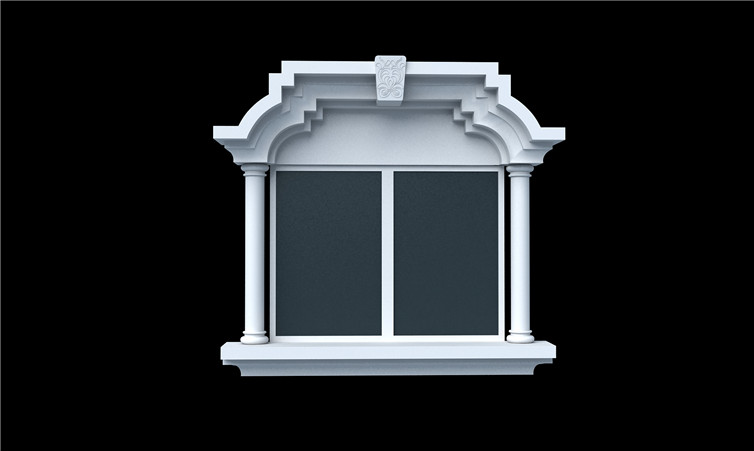

Window frame-4
Window frame-4
Window frame-5
Window frame-5

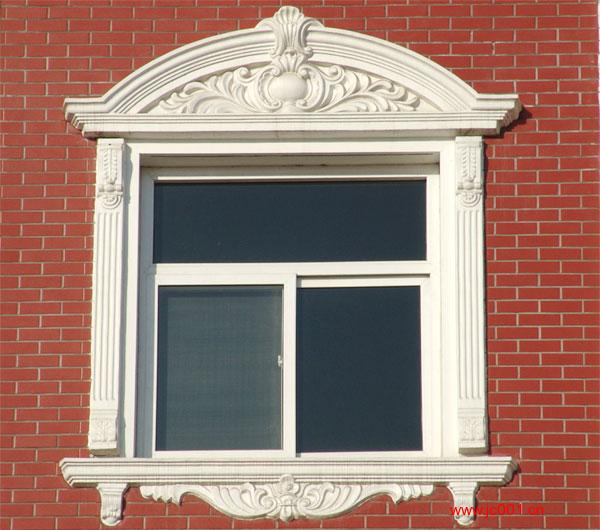

Window frame-6
Window frame-6
Window frame-7
Window frame-7

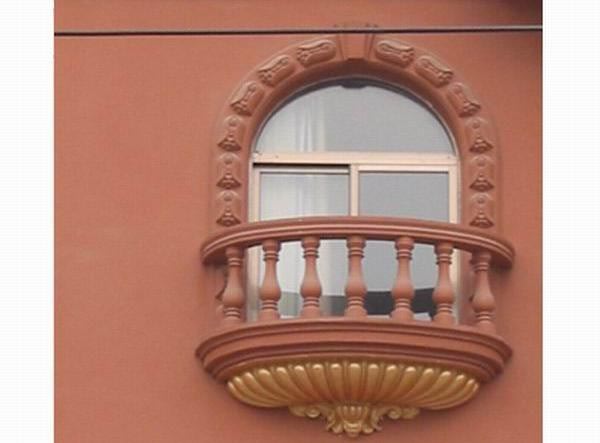

Window frame-8
Window frame-8

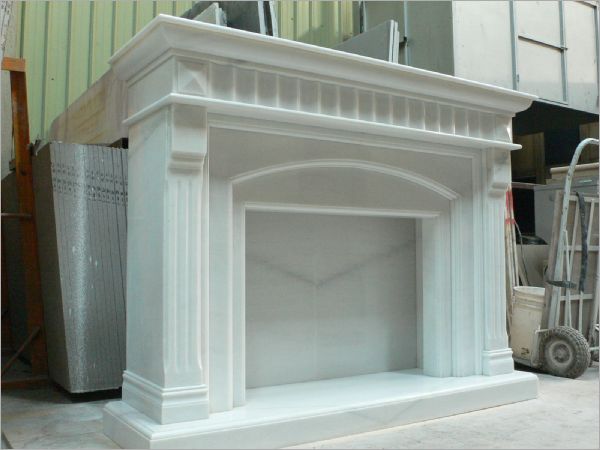

Window frame-9
Window frame-9
Window frame-10
Window frame-10

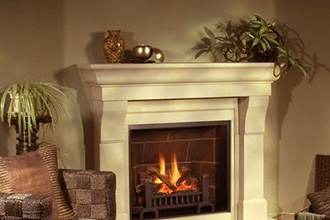

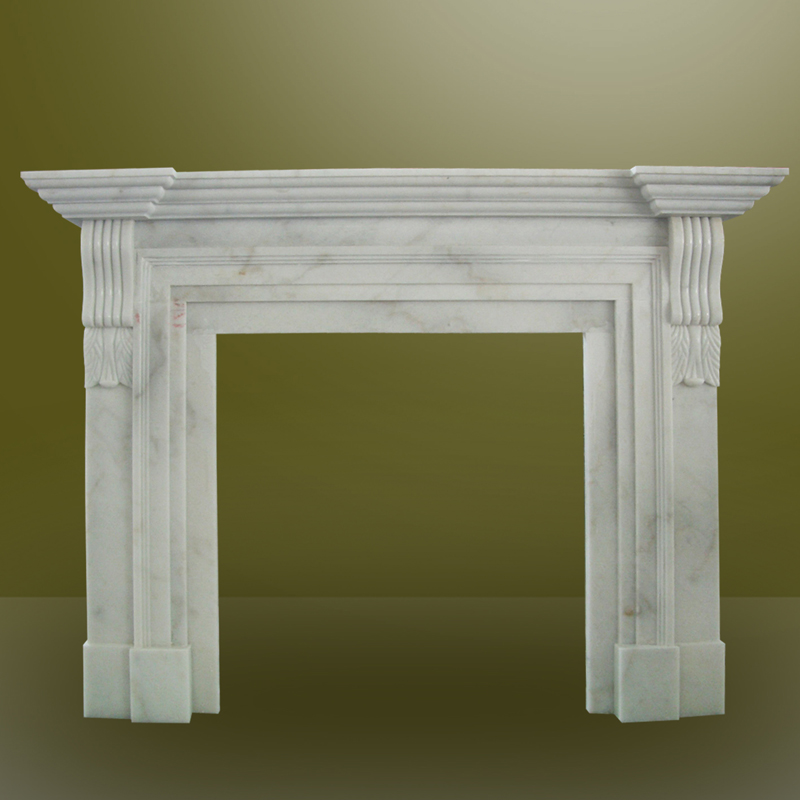

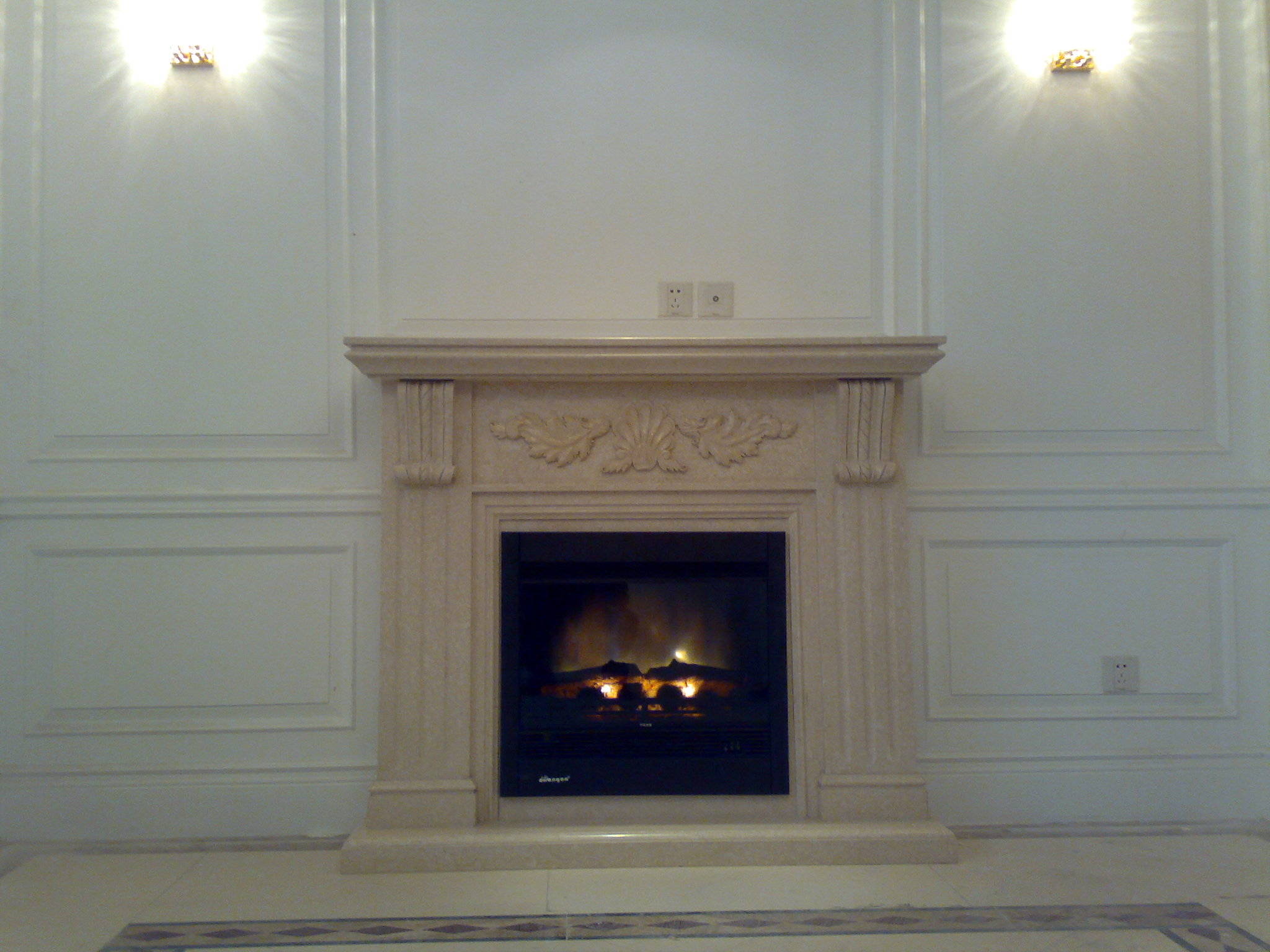

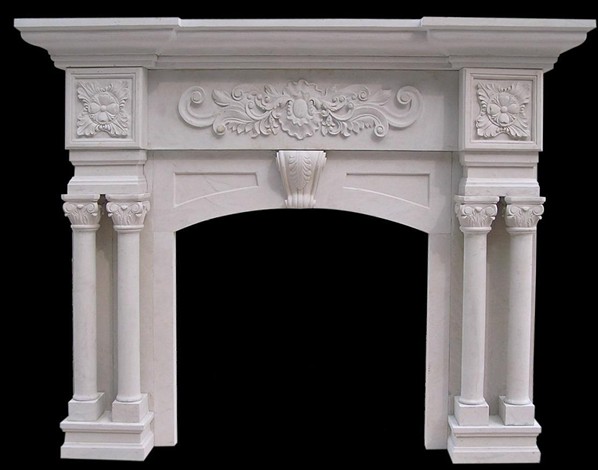

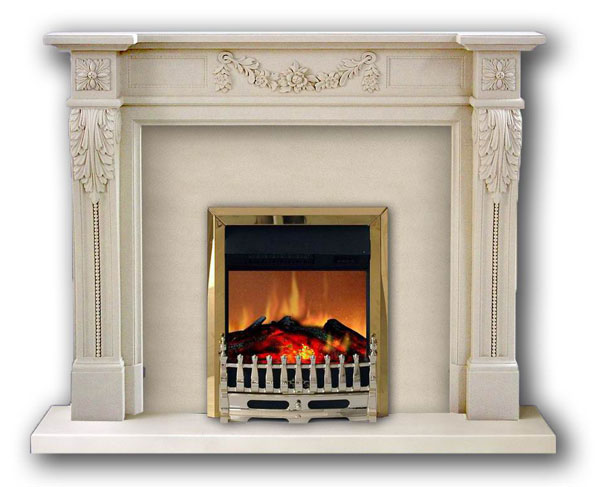

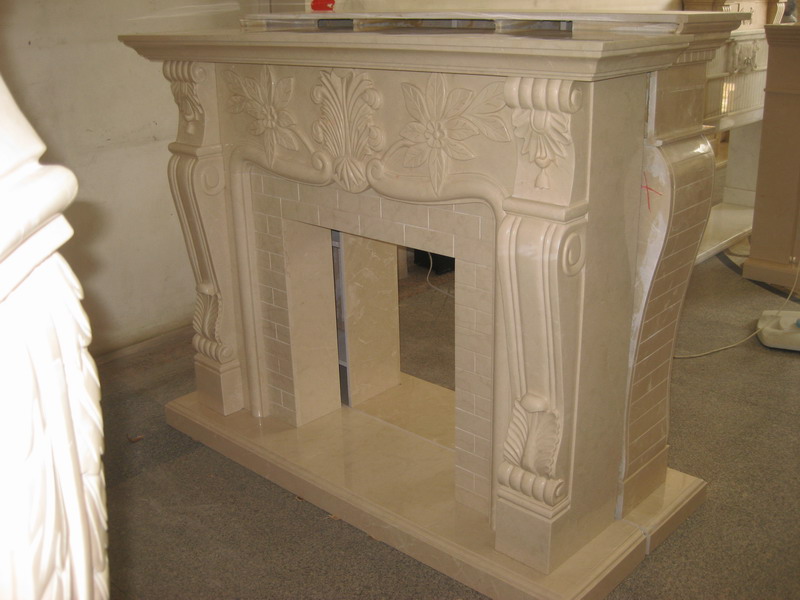

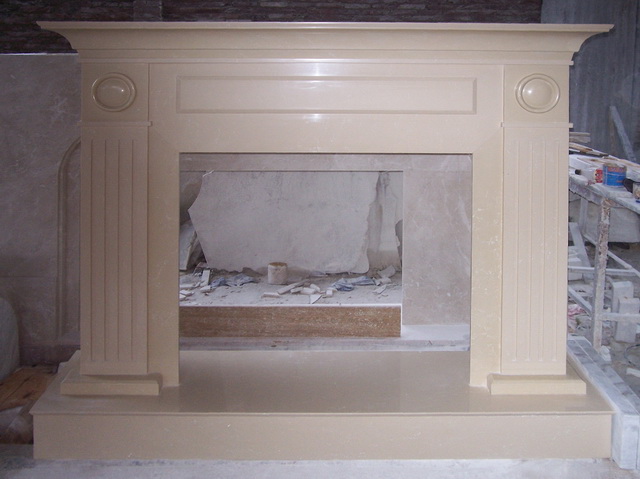

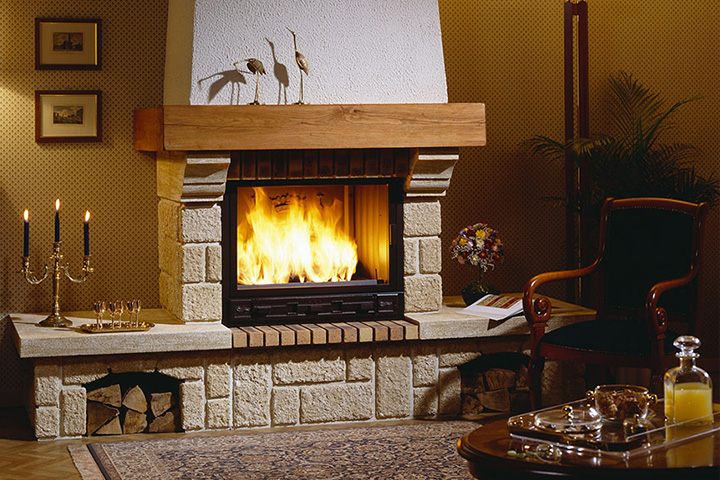

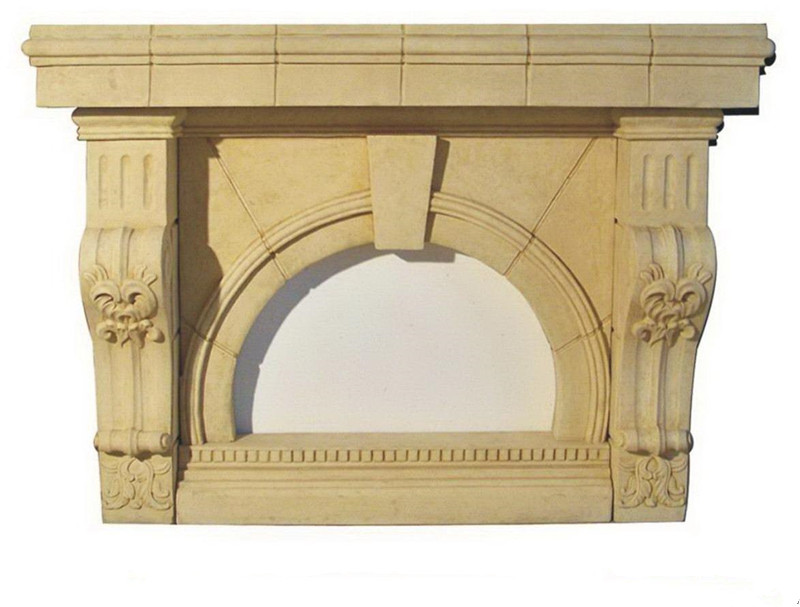

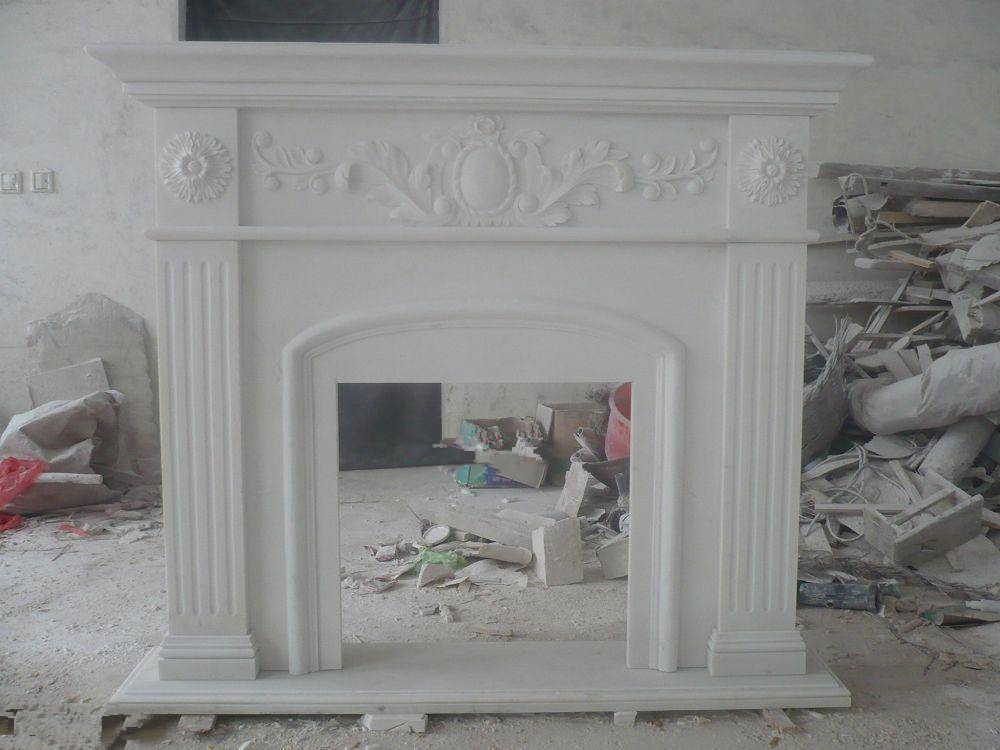

Fireplace-1
Fireplace-1
Fireplace-2
Fireplace-2
Fireplace-3
Fireplace-3
Fireplace-4
Fireplace-4
Fireplace-5
Fireplace-5
Fireplace-6
Fireplace-6
Fireplace-7
Fireplace-7
Fireplace-8
Fireplace-8
Fireplace-9
Fireplace-9
Fireplace-10
Fireplace-10

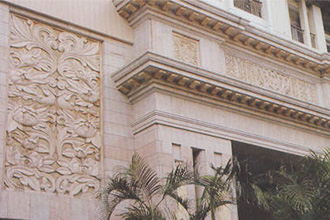

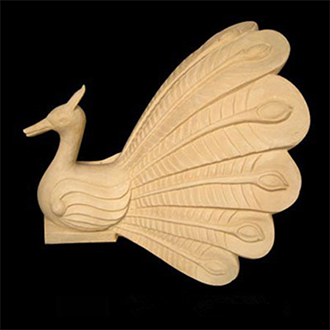

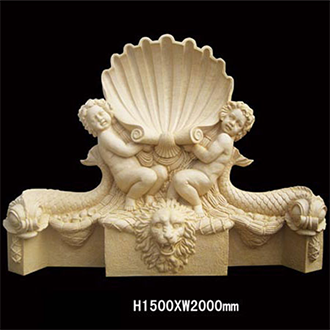

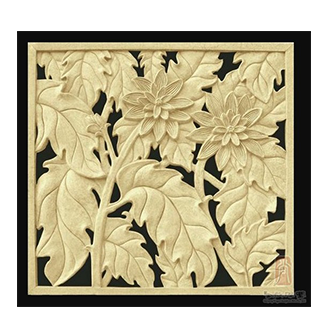

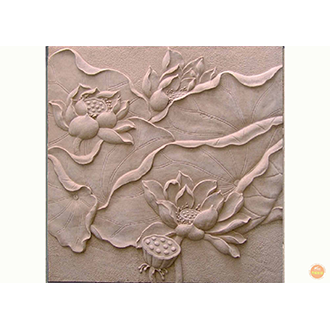

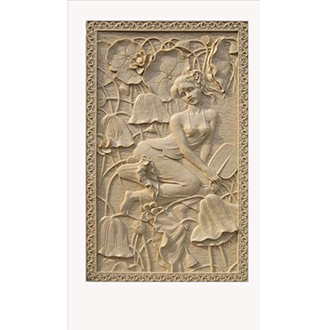

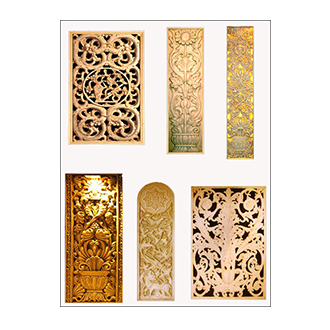

Carving/Carving-1
Carving/Carving-1
Carving/Carving-2
Carving/Carving-2
Carving/Carving-3
Carving/Carving-3
Carving/Carving-4
Carving/Carving-4
Carving/Carving-5
Carving/Carving-5
Carving/Carving-6
Carving/Carving-6
Carving/Carving-7
Carving/Carving-7
Carving/Carving-8
Carving/Carving-8
Carving/Carving-9
Carving/Carving-9

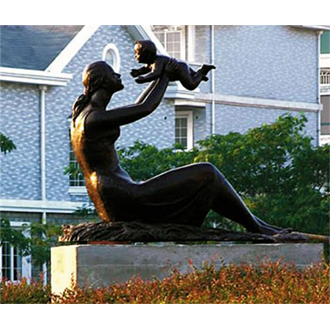

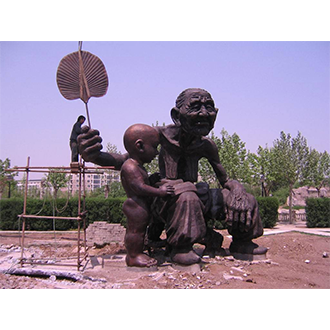

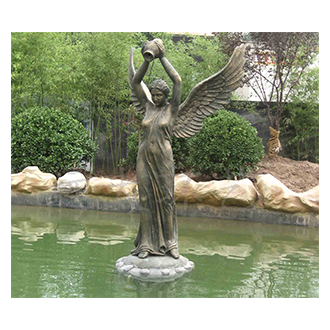

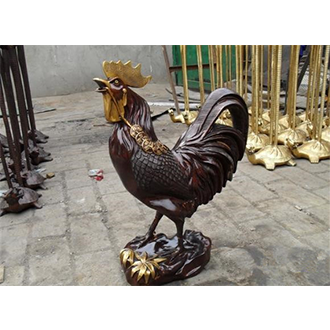

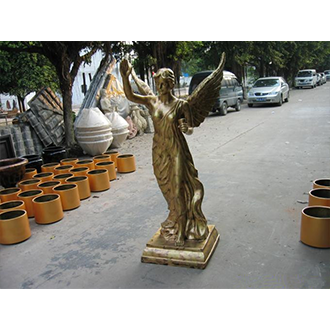

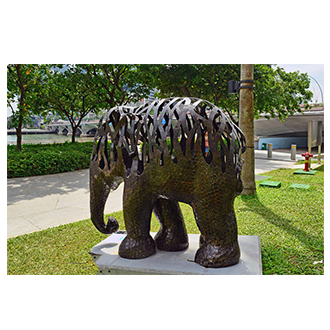

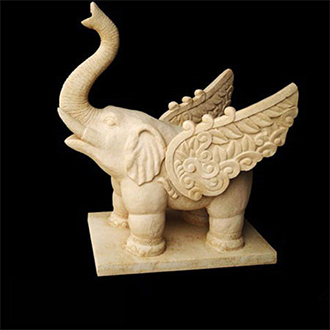

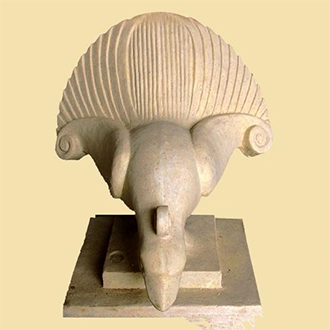

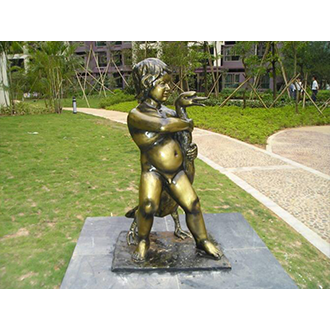

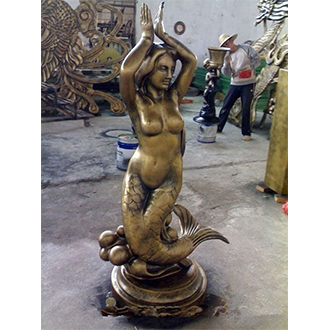

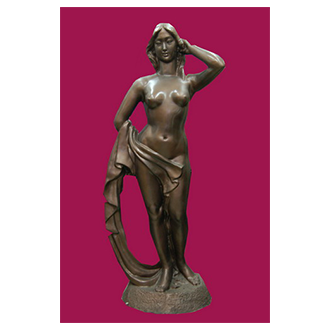

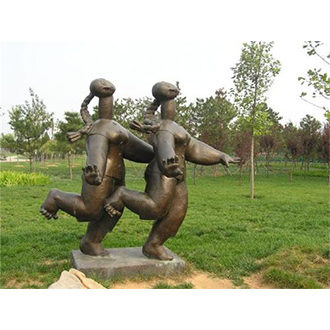

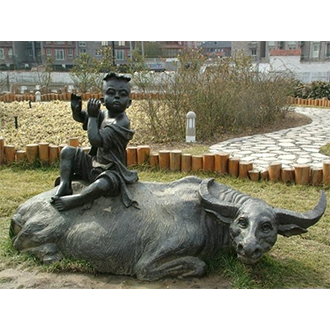

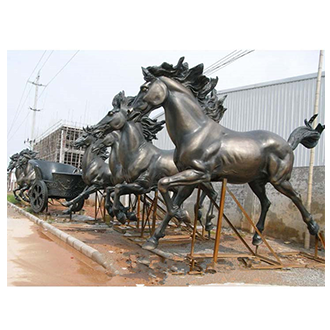

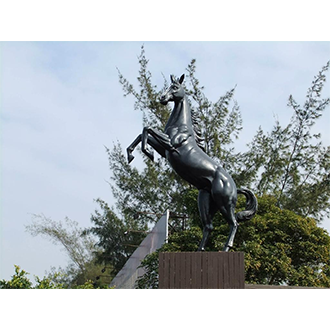

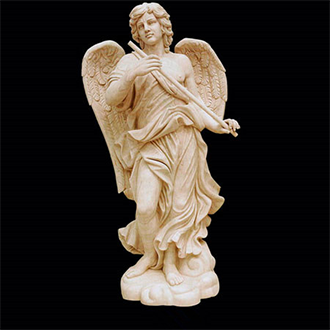

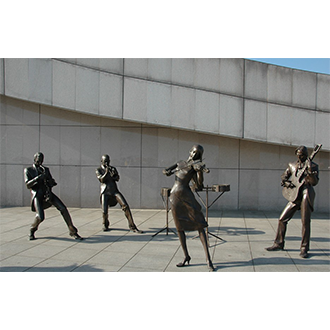

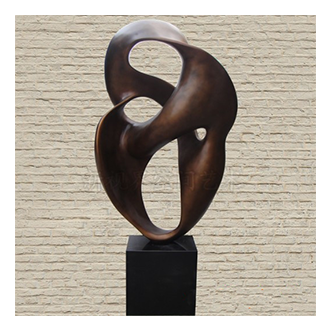

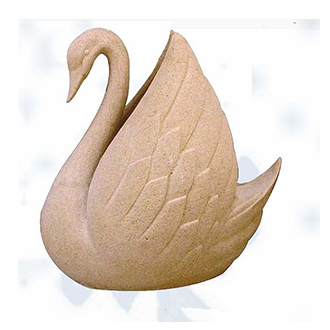

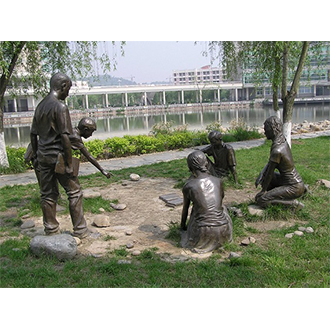

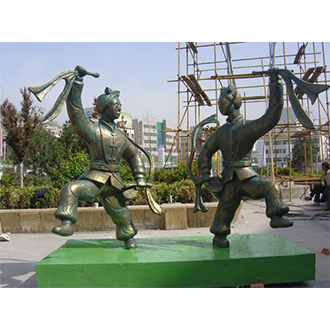

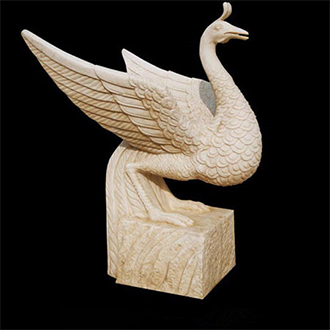

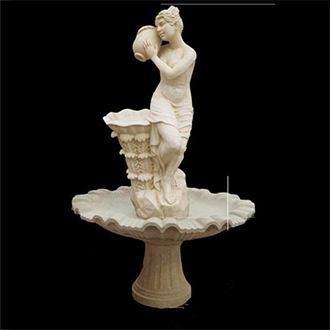

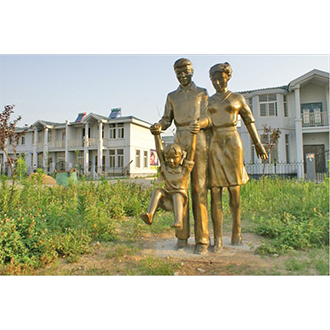

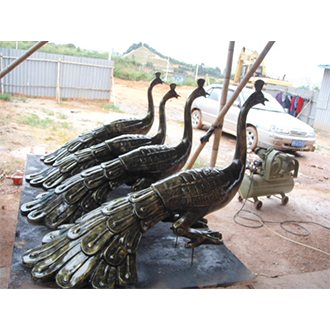

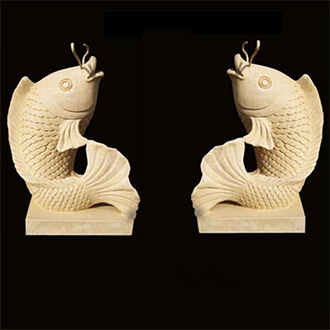

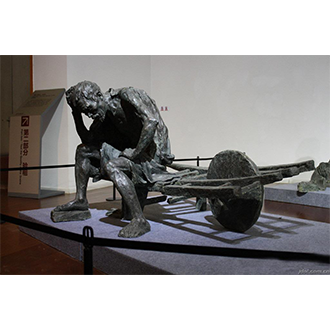

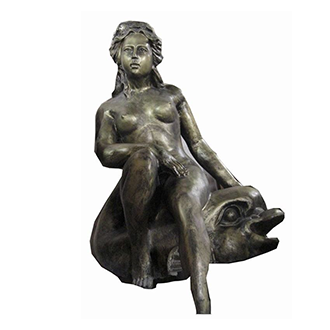

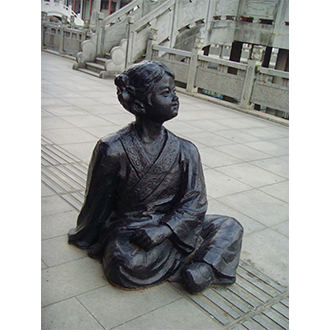

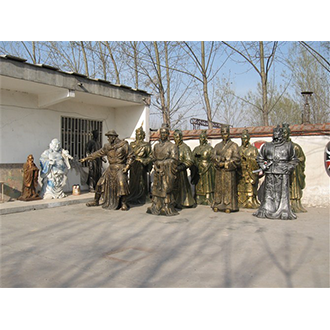

sculpture-1
sculpture-1
sculpture-2
sculpture-2
sculpture-3
sculpture-3
sculpture-4
sculpture-4
sculpture-5
sculpture-5
sculpture-6
sculpture-6
sculpture-7
sculpture-7
sculpture-8
sculpture-8
sculpture-9
sculpture-9
sculpture-10
sculpture-10
sculpture-11
sculpture-11
sculpture-12
sculpture-12
sculpture-13
sculpture-13
sculpture-14
sculpture-14
sculpture-15
sculpture-15
sculpture-16
sculpture-16
sculpture-17
sculpture-17
sculpture-18
sculpture-18
sculpture-19
sculpture-19
sculpture-20
sculpture-20
sculpture-21
sculpture-21
sculpture-22
sculpture-22
